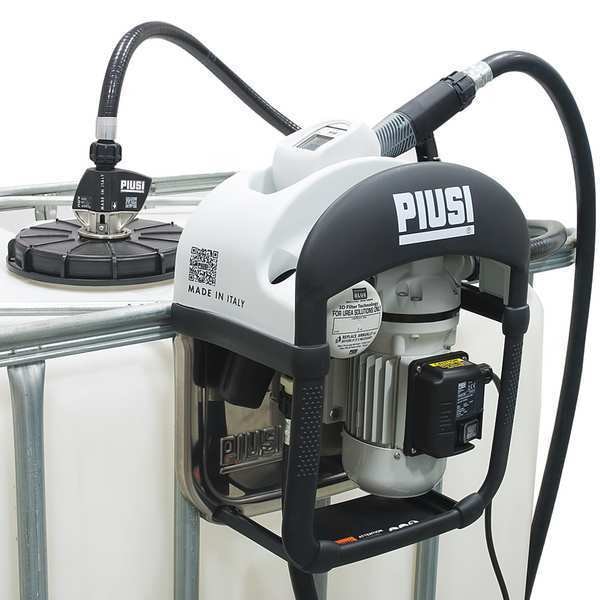

Piusi Electric Operated Drum Pump, 120VAC, 9 Max. Flow Rate , 370W HP, Stainless steel, 1" FBSP Inlet F00101A0H - main

Electric Operated Drum Pump, 120VAC, 9 Max. Flow Rate , 370W HP, Stainless steel, 1" FBSP Inlet

  • Mfr # F00101A0H

  • Zoro # G8500235

product price:  $1,373.99
/ea
Free Shipping & Returns

Key Features

Voltage
120VAC
Application
Agriculture; Fleet; Industrial; Off-Road
HP
370W
Housing Material
Stainless steel
GPM
9
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
F00101A0H
Zoro #
G8500235
UPC #
810015630297
Country of Origin
Italy

Dimensions

Inlet Size
1" FBSP
Discharge Tube Length
25 ft.
Manufacturers Warranty Length
2 yr. Manufacturing Defects
Outlet Size
1"
Suction Tube Length
5 ft
Hose Length
18 ft
Overall Length
19 in
Cord Length
72 in
Hose Inside Dia.
3/4 in
For Container Size
275 gal, 330 gal
Hose Outside Dia.
1 1/8 in
Bung Connection Dia.
2 in
Spout Discharge Size
3/5 in

Details

Voltage
120VAC
Application
Agriculture; Fleet; Industrial; Off-Road
HP
370W
Housing Material
Stainless steel
GPM
9
Seal Material
Nitrile
Self-Priming
Yes
Max. Viscosity
1 cps
Item
Electric Operated Drum Pump
Suction Tube Type
Flexible Hose
Max. Liquid Temp.
104 Degrees F
Metered
Yes
Includes
ADAPTER, DELIVERY HOSE, DISCHARGE HOSE, METER, NOZZLE , PUMP
Adapter Type
PDC
Phase
1
Duty
Intermittent
Motor RPM
1,400 RPM
Features
COMPATIBLE WITH DEF
Agency Compliance
ISO 22241
Hz
60
Hose Material
EPDM
Adapter Material
Stainless Steel
Motor Enclosure
MEC
For Use With
50/50 Antifreeze, Diesel Exhaust Fluid
Wetted Materials
Delrin, EPDM Nylon, NBR, Stainless steel
Max. GPM for Water
43
Motor Type
Permanent T Capcitor
Max. Head
13 ft.
Max. Pressure
23 psi
Nozzle Material
Nylon, Stainless Steel, Viton
Duty Cycle
Intermittent
Hose Cover Material
EPDM
Full Load Amps
1.95 A
Diesel Exhaust Fluid Compatible
Yes
Compatible Chemicals
Antifreeze (Coolant), DEF
Series
NO
Pump Connection OD
1 in
Pump Connection Type
Hose Barb
Max. Head - Pumps
45 ft
Runs Dry
No
Includes Spout
Yes
Includes Nozzle
Yes
Discharge Tube Outlet ID
3/4 in
Nozzle Operation
Automatic
Includes Suction Tube
Yes
Hose Tube Material
EPDM
Max. Fluid Temp.
104 Degrees F
Noise Level
75 db
Min. Fluid Temp.
12 Degrees F
Number of Phases
1
For Media Type
Antifreeze, DEF
Pump Connection ID
1 in
Motor HP
2/3 hp
Includes Bung Adapter
Yes
For Container Type
Tote
Frequency (Hz)
60 Hz
Power Source
Electric
Variable Speed
No
Housing Material - Pumps
Nylon
Discharge Connection Type
Hose Barb
Max. Head Pressure
22 psi
Spout Material
Stainless Steel
Discharge Tube Outlet OD
1 1/8 in
Max. Flow Rate
9 gpm
Thermal Protection
Yes
Food Grade
No
Includes Discharge Hose
Yes
Grease
NT
Rated Voltage
120V AC
Adapter Connection Type
Buttress
Gear Lube
NT
Explosion Proof
No
Max. Outlet Pressure
22 psi

Description

Electric Drum Pump, Hose Inside Dia. 3/4 in, Max. Head Pressure 22 psi, Max. Outlet Pressure 22 psi, For Use With 50/50 Antifreeze, Diesel Exhaust Fluid, Rated Voltage 120 V AC, Pump Connection ID 1 in, Hose Length 18 ft, Suction Tube Length 60 in, Cord Length 72 in, Includes Bung Adapter Yes, Runs Dry No, Nozzle Operation Automatic, Thermal Protection Yes, Frequency (Hz) 60 Hz, Power Source Corded Electric, Variable Speed No, Includes Discharge Hose Yes, Self-Priming Yes
