This item is Discontinued.

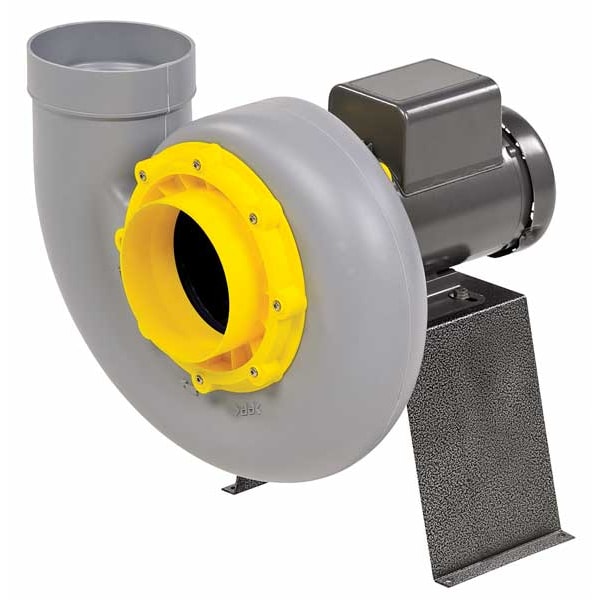

Plastec Blower, D/D, Haz Loc, 115/230 V, HP 1/3 PLA20XS4P

Blower, D/D, Haz Loc, 115/230 V, HP 1/3 (Discontinued)

  • Mfr # PLA20XS4P
  • Zoro # G0777262
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PLA20XS4P
Zoro #
G0777262
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia. (In.)
7.87 in
Width (In.)
18.3 in
Outlet Dia. (In.)
6.63 in
Shaft Dia. (In.)
14 mm
Inlet Dia. (In.)
6.29 in
Height (In.)
20.1 in
Wheel Width (In.)
7.87 in
Depth (In.)
20 in
Housing Width
18 1/4 in
Outlet Size
6 5/8 in diameter
Overall Width
18 1/4 in
Wheel Dimensions
7 3/4 in Dia. x 7 3/4 in W
Overall Depth
20 in
Inlet Diameter
6 1/4 in
Overall Height
20 1/16 in
Shaft Diameter
14 mm
Housing Height
20 1/16 in
Outlet Diameter
6 5/8 in
Wheel Width
7 13/16 in
Wheel Diameter
7 3/4 in

Details

Item
Blower
Type
Hazardous Location, Direct Drive Forward Curve
Voltage
115/230
Motor HP
1/4 hp
Motor Type
Capacitor-Run
Motor Frame
71
Wheel Type
Forward-Curved
CFM @ 1.000-In. SP
600
Agency Compliance
Motors are UL Listed and CSA Certified
CFM @ 0.500-In. SP
800
Housing Material
Plastic
CFM @ 0.250-In. SP
#
Wheel Material
Plastic
CFM @ 1.250-In. SP
400
Motor Enclosure
Totally Enclosed Fan Cooled
Rotation
CCW
Hz
50/60
Max. Ambient Temp. (F)
102 Degrees F
Full Load Amps
6.6/3.3
Blower RPM
1,725 RPM
Bearing Type
Ball
Max. Inlet Temp. (Deg. F)
140 Degrees F
CFM @ 0.750-In. SP
700
Includes
Motor Mounting Base
Phase
1
Motor RPM
1,725 RPM
CFM @ 0.200-In. SP
#
dBA @ 5 Feet
54 dBA
Applications, Comments
Designed to Exhaust Fumes from Highly Corrosive Environments Such as Laboratories, Chemical Plants and Hospitals
Material
Plastic Wheel & Plastic Housing
Application
Chemical Plants, Hospitals, Laboratories
Hazardous Location Specification
Class I Group D, Class II Groups F, Class II Groups G, Division 1, Division 2
Airflow @ 1.000 in SP
600 cfm
Nominal Voltage
115/230V AC
Motor Horsepower
1/4 hp
Standards
CSA Certified, UL Listed
Sound Level
54 dBA @ 5 ft
Maximum Ambient Temperature
102 Degrees F
Motor Frame Designation
71
Outlet Shape_broad
Round
Includes Drive Package
Yes
For Ventilation Type
Exhaust
Features
Color Coding Simplifies Blower Identification, Molded Impeller Hub and Hub Cap Protect Motor Shaft, Extending Product Life, Seamless Housing Prevents Leakage of Corrosive Air Fumes
Maximum Inlet Air Temperature
140 Degrees F
Resistance Properties
Chemical Resistant, Corrosion Resistant
Frequency
50/60 Hz
Motor Enclosure Design_Table
Totally Enclosed Motor
For Fan Speed (Dependent on Motor)
1,725 RPM
Assembly
Assembled
Current
6.6/3.3 A
Motor Enclosure Design
Totally Enclosed Fan-Cooled (TEFC)
Includes Motor
Yes
Airflow @ Static Pressures
600 cfm @ 1.000 in SP
Nameplate Voltage
115/230V AC
Motor Speed
1,725 RPM
Mount Type
Motor Mount
Airflow @ 0.750 in SP
700 cfm
Airflow @ 0.500 in SP
800 cfm
Drive Type
Direct Drive
Airflow @ 1.250 in SP
400 cfm
Corrosion Resistant
Yes
Outlet Shape
Round
Chemical Resistant
Yes
Airflow @ 0.500 in SP Range
0 to 999 cfm
Maximum Fan Speed
1,725 RPM
OEM Replacement
No

Description

Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Yes, Assembly Assembled, Wheel Diameter 7 3/4 in, Airflow @ 0.500 in SP 800 cfm, Airflow @ 0.750 in SP 700 cfm, Airflow @ 1.000 in SP 600 cfm, Airflow @ 1.250 in SP 400 cfm
