This item is Discontinued.

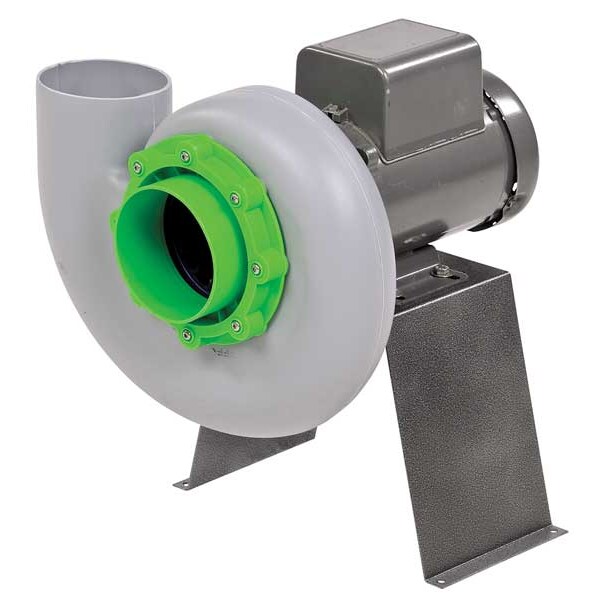

Plastec Blower, D/D, Haz Loc, 230/460 V, HP 1/2 PLA15XT2P

Blower, D/D, Haz Loc, 230/460 V, HP 1/2 (Discontinued)

  • Mfr # PLA15XT2P
  • Zoro # G1011166
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PLA15XT2P
Zoro #
G1011166
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia. (In.)
5.9 in
Shaft Dia. (In.)
14 mm
Depth (In.)
18.82 in
Wheel Width (In.)
5.92 in
Width (In.)
14.16 in
Outlet Dia. (In.)
4.47 in
Height (In.)
16.13 in
Inlet Dia. (In.)
4.92 in
Inlet Diameter
4 7/8 in
Overall Depth
18 13/16 in
Outlet Diameter
4 7/16 in
Wheel Dimensions
5 7/8 in Dia. x 5 7/8 in W
Outlet Size
4 3/8 in diameter
Wheel Diameter
5 7/8 in
Overall Width
14 1/8 in
Wheel Width
5 7/8 in
Shaft Diameter
14 mm
Overall Height
16 1/8 in
Housing Height
16 1/8 in
Housing Width
14 1/8 in

Details

Item
Blower
Type
Hazardous Location, Direct Drive Forward Curve
Voltage
230/460
Motor HP
1/2 hp
Motor Type
Hazardous Location, Three Phase
Wheel Material
Plastic
CFM @ 0.750-In. SP
540
Max. Ambient Temp. (F)
102 Degrees F
Motor RPM
3,450 RPM
CFM @ 0.500-In. SP
550
Hz
50/60
Agency Compliance
Motors are UL Listed and CSA Certified
CFM @ 1.250-In. SP
475
Wheel Type
Forward-Curved
CFM @ 2.000-In. SP
310
Rotation
CCW
CFM @ 1.000-In. SP
500
CFM @ 0.200-In. SP
#
Includes
Motor Mounting Base
Full Load Amps
1.6/0.8
dBA @ 5 Feet
72 dBA
Applications, Comments
Designed to Exhaust Fumes from Highly Corrosive Environments Such as Laboratories, Chemical Plants and Hospitals
CFM @ 0.250-In. SP
#
Motor Frame
71
Blower RPM
3,450 RPM
Motor Enclosure
Totally Enclosed Fan Cooled
Housing Material
Plastic
Bearing Type
Ball
CFM @ 1.500-In. SP
440
Phase
3
Max. Inlet Temp. (Deg. F)
140 Degrees F
Material
Plastic Wheel & Plastic Housing
Application
Chemical Plants, Hospitals, Laboratories
Sound Level
72 dBA @ 5 ft
Mount Type
Motor Mount
Motor Enclosure Design
Totally Enclosed Fan-Cooled (TEFC)
For Fan Speed (Dependent on Motor)
3,450 RPM
Standards
CSA Certified, UL Listed
Motor Frame Designation
71
Airflow @ Static Pressures
500 cfm @ 1.000 in SP / 440 cfm @ 1.500 in SP
Nominal Voltage
230/460V AC
Motor Speed
3,450 RPM
Airflow @ 1.000 in SP
500 cfm
Current
1.6/0.8 A
Motor Enclosure Design_Table
Totally Enclosed Motor
Outlet Shape_broad
Round
Frequency
50/60 Hz
Outlet Shape
Round
For Ventilation Type
Exhaust
Maximum Inlet Air Temperature
140 Degrees F
Resistance Properties
Chemical Resistant, Corrosion Resistant
Airflow @ 1.500 in SP
440 cfm
Airflow @ 1.500 in SP Range
0 to 999 cfm
Airflow @ 1.250 in SP
475 cfm
Motor Horsepower
1/2 hp
Features
Color Coding Simplifies Blower Identification, Molded Impeller Hub and Hub Cap Protect Motor Shaft, Extending Product Life, Seamless Housing Prevents Leakage of Corrosive Air Fumes
Maximum Fan Speed
3,450 RPM
Chemical Resistant
Yes
Airflow @ 0.750 in SP
540 cfm
Nameplate Voltage
230/460V AC
Corrosion Resistant
Yes
Includes Motor
Yes
Assembly
Assembled
Drive Type
Direct Drive
Airflow @ 0.500 in SP Range
0 to 999 cfm
Hazardous Location Specification
Class I Group D, Class II Groups F, Class II Groups G, Division 1, Division 2
Includes Drive Package
Yes
Airflow @ 2.000 in SP
310 cfm
Airflow @ 0.500 in SP
550 cfm
Maximum Ambient Temperature
102 Degrees F
OEM Replacement
No

Description

Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Yes, Assembly Assembled, Wheel Diameter 5 7/8 in, Airflow @ 0.500 in SP 550 cfm, Airflow @ 0.750 in SP 540 cfm, Airflow @ 1.000 in SP 500 cfm, Airflow @ 1.250 in SP 475 cfm, Airflow @ 1.500 in SP 440 cfm, Airflow @ 2.000 in SP 310 cfm
