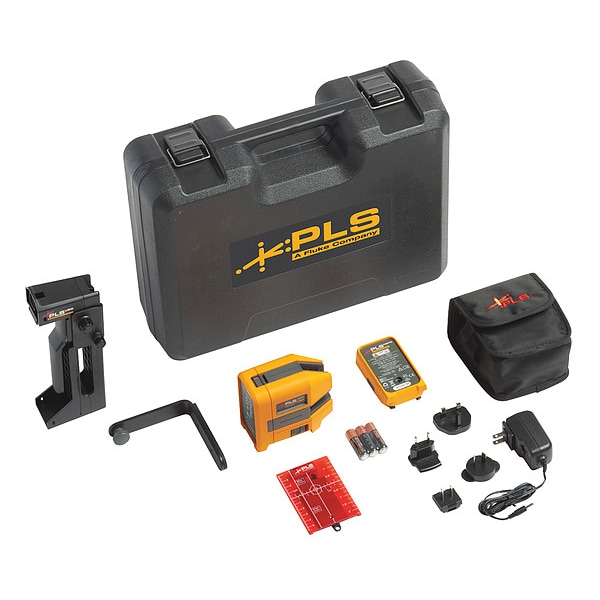

Pls Cross Line Laser, Automatic Self-Leveling PLS 180R RBP KIT - main

Cross Line Laser, Automatic Self-Leveling

  • Mfr # PLS 180R RBP KIT

  • Zoro # G7807119

product price: $637.99
/ea
Free Shipping & Returns

Key Features

Laser Usage Environment
Exterior
Laser Projection
Horizontal, Vertical
Leveling Type
Pendulum Self-Leveling
Number of Beams
2
Number of Dots
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PLS 180R RBP KIT
Zoro #
G7807119
UPC #
095969974509
Country of Origin
China

Dimensions

Width
2 1/2 in
Length
4 3/32 in
Height
4 39/64 in
Thread Size
1/4"-20, 5/8"-11
Overall Width
2 1/2 in
Tripod Thread Size
1/4"-20, 5/8"-11
Overall Height
4 5/8 in
Overall Depth
4 1/8 in

Details

Item
Cross Line Laser Kit
Laser Usage Environment
Exterior
Laser Projection
Horizontal, Vertical
Leveling Type
Pendulum Self-Leveling
Number of Beams
2
Number of Dots
4
Number of Lines
2
Laser Color
Red
Range w/o Detector
50 ft
Accuracy
+/-1/8 in @ 30 ft
Features
This Professional Self-Leveling Cross Line Laser Level is Equipped for Multiple Applications Including Wall Construction, Acoustic Ceiling Installation, Tile Installation, Residential and Commercial Construction
Total Number of Vials
0
Number of Plumb Vials
0
Auto Leveling Range
+/-4 Degrees
Auto Shutoff
Yes
Range w/Detector
200 ft
Laser Class
Class 2
Number of Level Vials
0
Power Source
(3) AA Batteries, Li-Ion Battery
Number of Scanning Modes
0
Number of 45 Degree Vials
0
Includes
Case, Floor Stand, Target, Bracket
Visual/Audible Indicators
Yes
Battery Type
Alkaline
IP Rating
IP54
Mount Type
Magnetic
Number of Planes
0
Laser Beam Color
Red
Includes Batteries
Batteries Included
Standards
IEC 60825-1:2014 Class 2, IEC 61010-1, IEC 61326-1
Laser Output
Less Than1 mW
Self-Leveling Range
+/-4 Degrees
Use Location
Outdoor
Number of 45 Vials
0
Level Indicators
Audible, Visual
Working Range without Detector - Maximum
50 ft
Operating Temperature - Minimum
14 Degrees F
Working Range with Detector - Maximum
200 ft
Weight
1.3 lb
Operating Temperature - Maximum
122 Degrees F
Automatic Shutoff
Yes

Description

Cross Line Laser Kit, Accuracy +/-1/8 in @ 30 ft, Battery Type Alkaline, Features This Professional Self-Leveling Cross Line Laser Level is Equipped for Multiple Applications Including Wall Construction, Acoustic Ceiling Installation, Tile Installation, Residential and Commercial Construction, Includes Case, Floor Stand, Target, Bracket, Number of Beams 2, Number of Planes 0, Number of Dots 4, Number of Lines 2, Working Range with Detector - Maximum 200 ft

Restrictions

Hazardous material
