  11. Dot Laser, 4-39/64" L, 2-1/2" W, IP Rating: 54

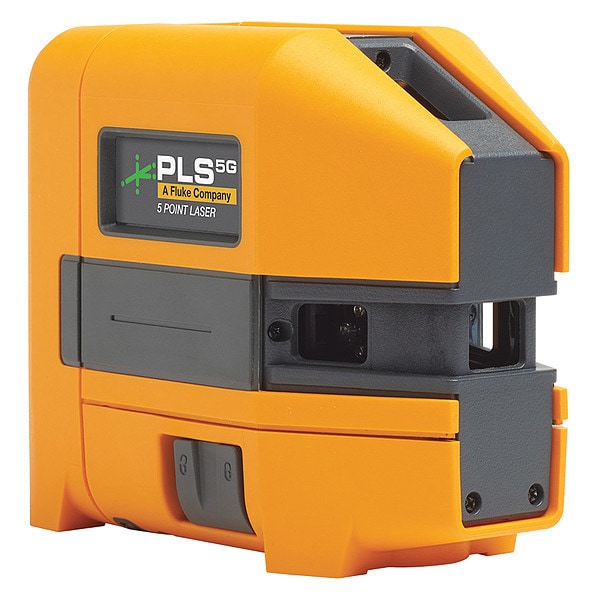

Pls Dot Laser, 4-39/64" L, 2-1/2" W, IP Rating: 54 PLS 5G Z - main

Dot Laser, 4-39/64" L, 2-1/2" W, IP Rating: 54

  • Mfr # PLS 5G Z

  • Zoro # G4283594

product price: $564.99
/ea
Free Shipping & Returns

Key Features

Laser Usage Environment
Exterior, Interior
Laser Projection
Horizontal, Vertical
Leveling Type
Pendulum Self-Leveling
Number of Beams
5
Number of Dots
5
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PLS 5G Z
Zoro #
G4283594
UPC #
095969876407
Country of Origin
China

Dimensions

Thread Size
5/8"-11
Length
4 7/64 in
Width
2 1/2 in
Height
4 39/64 in
Overall Depth
4 1/8 in
Overall Height
4 5/8 in
Tripod Thread Size
1/4"-20
Overall Width
2 1/2 in

Details

Item
Dot Laser
Laser Usage Environment
Exterior, Interior
Laser Projection
Horizontal, Vertical
Leveling Type
Pendulum Self-Leveling
Number of Beams
5
Number of Dots
5
Number of Lines
0
Laser Color
Green
Range w/o Detector
300 ft
Plumb Down
Yes
IP Rating
IP54
Preset Angle
None
Power Source
(3) AA Batteries
Number of Scanning Modes
0
Auto Shutoff
No
Auto Leveling Range
+/-4 Degrees
Laser Class
Class 2
Plumb Up
Yes
Total Number of Vials
0
Accuracy
Less Than or Equal To 1/8 in @ 30 ft.
Includes
Case, Floor Stand
Visual/Audible Indicators
No
Range w/Detector
100 ft
Battery Type
AA
Number of Level Vials
0
Rotating Speed
0 RPM
Grade Capability
Single
Number of Plumb Vials
0
Number of 45 Degree Vials
0
Features
Fast Settling, Locking Pendulum
Material
Plastic
Self-Leveling Range
4 Degrees
Operating Temperature - Maximum
122 Degrees F
Bluetooth
Not Bluetooth Compatible
Working Range with Detector - Maximum
30 ft
Mount Type
Mounting Bracket, Tripod
Automatic Shutoff
No
Plumb Direction
Plumb Down, Plumb Up
Weight
1.3 lb
Includes Batteries
Batteries Included
Standards
IEC 60825-1:2014 Class 2, IEC 61010-1: Pollution Degree 2
Use Location
Indoor, Outdoor
Laser Output
Less Than 1 mW
Number of 45 Vials
0
Number of Planes
0
Level Indicators
Visual
Operating Temperature - Minimum
14 Degrees F
Laser Beam Color
Green
Working Range without Detector - Maximum
100 ft

Description

Dot Laser, Accuracy Less Than or Equal To 1/8 in @ 30 ft., Battery Type AA, Bluetooth Not Bluetooth Compatible, Includes Case, Floor Stand, Number of Beams 5, Number of Planes 0, Number of Dots 5, Number of Lines 0, Working Range with Detector - Maximum 30 ft, Working Range without Detector - Maximum 100 ft, Mount Type Mounting Bracket, Tripod, Includes Batteries Batteries Included, Leveling Type Pendulum Self-Leveling, Laser Projection Horizontal, Vertical, Laser Beam Color Green
