  11. Dot Laser Kit, 4-39/64" L, 2-1/2" W
Pls Dot Laser Kit, 4-39/64" L, 2-1/2" W PLS 5G KIT - main

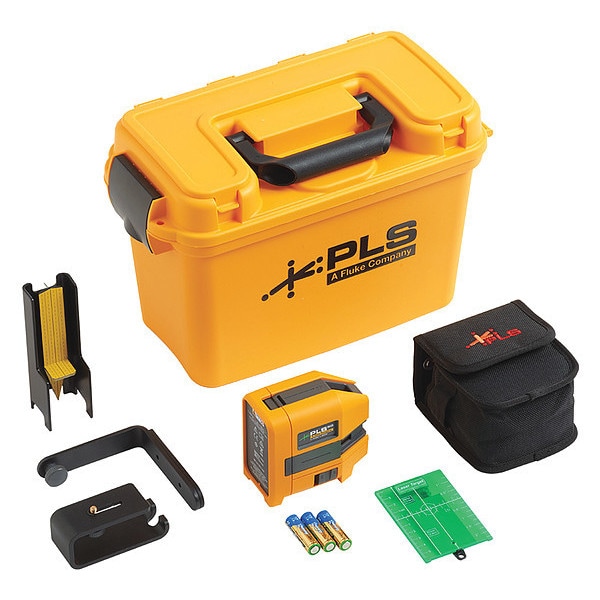

Dot Laser Kit, 4-39/64" L, 2-1/2" W

  • Mfr # PLS 5G KIT

  • Zoro # G4288059

product price: $689.99
/ea
Free Shipping & Returns

Key Features

Laser Usage Environment
Exterior, Interior
Laser Projection
Horizontal, Vertical
Leveling Type
Pendulum Self-Leveling
Number of Beams
5
Number of Dots
5
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PLS 5G KIT
Zoro #
G4288059
UPC #
095969876414
Country of Origin
China

Dimensions

Width
2 1/2 in
Length
4 7/64 in
Height
4 39/64 in
Thread Size
5/8"-11
Tripod Thread Size
1/4"-20
Overall Depth
4 1/8 in
Overall Width
2 1/2 in
Overall Height
4 5/8 in

Details

Item
Dot Laser Kit
Laser Usage Environment
Exterior, Interior
Laser Projection
Horizontal, Vertical
Leveling Type
Pendulum Self-Leveling
Number of Beams
5
Number of Dots
5
Number of Lines
0
Laser Color
Green
Range w/o Detector
300 ft
Range w/Detector
100 ft
Accuracy
Less Than or Equal To 1/8 in @ 30 ft.
Auto Leveling Range
+/-4 Degrees
Rotating Speed
0 RPM
Preset Angle
None
Total Number of Vials
0
Grade Capability
Single
Plumb Up
Yes
Power Source
(3) AA Batteries
Laser Class
Class 2
Number of Level Vials
0
IP Rating
IP54
Features
Fast Settling, Locking Pendulum
Auto Shutoff
No
Number of Scanning Modes
0
Battery Type
AA
Number of Plumb Vials
0
Number of 45 Degree Vials
0
Plumb Down
Yes
Visual/Audible Indicators
No
Material
Plastic
Includes
Case, Floor Stand, Target, Bracket
Number of 45 Vials
0
Plumb Direction
Plumb Down, Plumb Up
Laser Beam Color
Green
Operating Temperature - Minimum
14 Degrees F
Includes Batteries
Batteries Included
Self-Leveling Range
4 Degrees
Mount Type
Mounting Bracket, Tripod
Standards
IEC 60825-1:2014 Class 2, IEC 61010-1: Pollution Degree 2
Automatic Shutoff
No
Bluetooth
Not Bluetooth Compatible
Number of Planes
0
Working Range with Detector - Maximum
30 ft
Operating Temperature - Maximum
122 Degrees F
Level Indicators
Visual
Laser Output
Less Than 1 mW
Weight
1.3 lb
Working Range without Detector - Maximum
100 ft
Use Location
Indoor, Outdoor

Description

The Pacific Laser Systems PLS 5G Kit is a compact and reliable laser level that you can use for a variety of projects. It comes with several tools that help make your job easier. This rotary and straight line laser level has fast settling, locking pendulum for accuracy. The length ranges from 4 7/64 in to 4 39/64 in while the height ranges from 2 1/2 in to 3 1/8 in. You can choose between green or yellow lasers, depending on your needs. Both the rotary and straight wireway have a length of 4 39/64 inches. The Pacific Laser Systems PLS 5G Kit is the right choice for all your DIY projects as it gives you everything you need to get started right away.
