Shop All Raceway Fittings
Plugmold

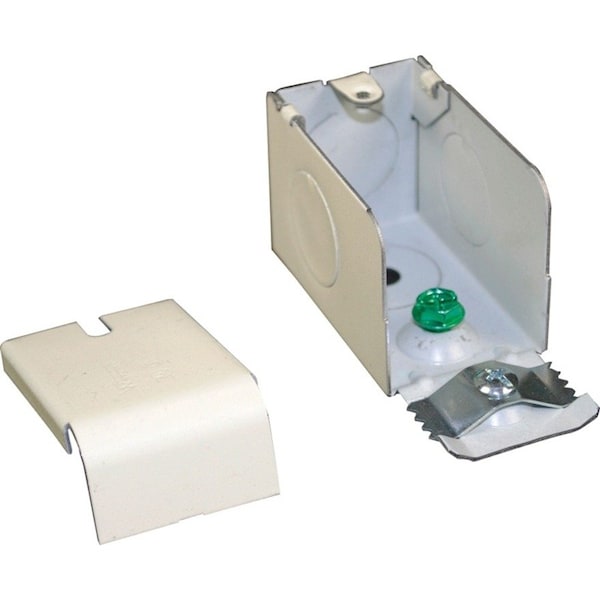

Entrance End, White, Stainless Steel, Ends

product price: $23.79
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Fittings Sub-Category End Fittings
  • Color Gray
  • For Use With V/G2000 Raceway
  • Material Stainless Steel
  • Includes (1) Ground Screw
See all product information

Product Information

Dimensions

Height 1.5 in
Length 3 in
Width 1.2813 in
Length (Straight Wireway) 3 in
Overall Length 3 in
For Raceway Width x Height 1 9/32 in x 3/4 in
Width (In.) 1-9/32
Height (In.) 1-1/2
Length (In.) 3
Overall Width 1 1/4 in
Overall Height 1 1/2 in

Details

Item Entrance End
Fittings Sub-Category End Fittings
Color Gray
For Use With V/G2000 Raceway
Material Stainless Steel
Includes (1) Ground Screw
Compatible with Product Type 2000 Raceways
Series 2000
Mounting Style Screw On
Features 1/2 in Trade Size Knockouts on End, Sides, Bottom, If More Capacity is Required, Use 2010A3, Includes Ground Screw
Material of Construction Stainless Steel
Standards cULus Listed
Number of Channels 1
Basic Material Stainless Steel
Voltage 125.0 V
Special Features Steel Raceway, Compact low profile design, Full range of fittings, one and two - gang device boxes.
Phase 1
Amperage 15A A
Number of Receptacles 2
Frequency Rating 50/60 Hz
Enclosure Type Stainless Steel
Application Sector Commercial
Type Plugmold
Standard cULus Listed Base & Blank Cover: File E4376 Guide RJBT. Multioutlet Assemblies: File E15191 Guide PVGT. Fittings: File E41751 Guide RJPR. Base & Blank Cover& Plugmold Series w/Snapcoil Harness: Meets Article 386 of NEC. Meets Section 12-3032 of CEC. Plugmold Wired Sections: Meets Article 380 of NEC. Meets Section 12-3032 of CEC.
Environmental Conditions Dry interior locations

Description

Entrance End, Series 2000, For Raceway Width x Height 1 9/32 in x 3/4 in, Material Stainless Steel, Color Gray, Number of Channels 1, Mounting Style Screw On, Compatible with Product Type 2000 Raceways, Features 1/2 in Trade Size Knockouts on End, Sides, Bottom, If More Capacity is Required, Use 2010A3, Includes Ground Screw, Includes (1) Ground Screw, Overall Height 1 1/2 in, Overall Length 3 in, Overall Width 1 1/4 in, Standards cULus Listed
