Shop PNEUMADYNE

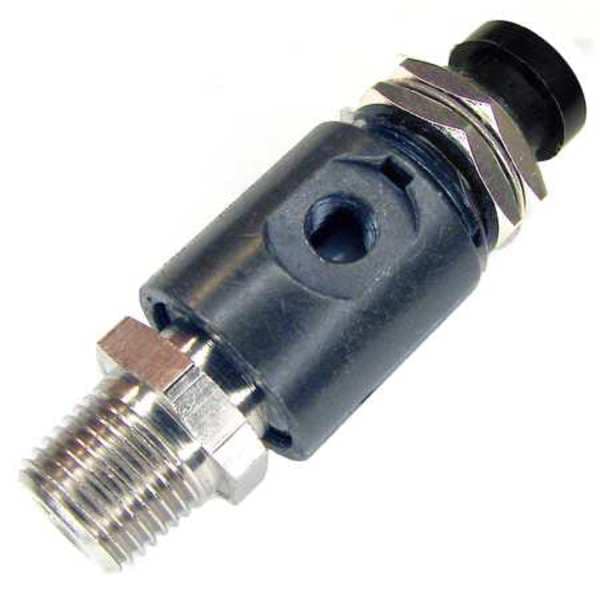

Control Valve, 3-Way, 1/8 In x No 10-32 FNPT

  • Mfr # A0-30-1

  • Zoro # G3940885

product price:
$
21.99
/ea

Key Features

Actuator/Return
Button/Spring
Center Position
Closed
Coefficient of Volume
0.2
Series
O
Number of Ways
Three-Way
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
A0-30-1
Zoro #
G3940885
UPC #
-
Country of Origin
United States
Item
Manual Air Control Valve
Actuator/Return
Button/Spring
Center Position
Closed
Coefficient of Volume
0.2
Series
O
Number of Ways
Three-Way
Number of Positions
Two-Position
Valve Max. Pressure Rating
125 psi
Body Material
Aluminum, Brass
Valve Ways and Positions
3-Way/2-Position
Normally Open / Normally Closed
Normally Closed
Max. Pressure
125 psi
Connection
NPT
Valve Actuator / Return
Button / Spring
Temp. Range
-20 Degrees to 160 Degrees F
Max. CFM - Valves
17.3 cfm
Air Valve Type
3-Way, 2-Position
CFM
17.3
Valve Temp. Range
-20 Degrees to 160 Degrees F
Seal Material
Buna-N
Exhaust Time
0.06 sec
Vacuum Rating
Vacuum Operable
Valve Action
Normally Closed
Fill Time
0.02 sec
Valve Port Connection Type
NPT
Coefficient of Volume (Cv)
0.24
Operating Pressure - Maximum
125 psi
Number of Ports
3
For Media
Air
Actuator Type
Button
Valve Port Connection Gender
Female
Flow Rate - Maximum
17.3 scfm
Exhaust Port Connection Type
Unthreaded
Operating Temperature - Maximum
160 Degrees F
Return Action
Spring Return
Operating Temperature - Minimum
-20 Degrees F
Product Type
Manual Air Control Valve
Actuation Force @ 125 psi
5.5 lb
Operating Pressure - Minimum
12.7 psi
Force @ 50 psi
3 lb

Description

Manual Air Control Valve, Valve Ways and Positions 3-Way/2-Position, Valve Port Size 10-32 UNF, Connection NPT, Valve Actuator / Return Button / Spring, Max. CFM - Valves 17.3 cfm, Valve Max. Pressure Rating 125 psi, Valve Temp. Range -20 Degrees to 160 Degrees F, Center Position Closed, Normally Open / Normally Closed Normally Closed, Coefficient of Volume 0.2, Body Material Aluminum, Brass, Overall Length 2 1/4 in, Overall Height 5/8 in, Overall Width 5/8 in, Series O, Manual Air Control Valve
