Pneumadyne

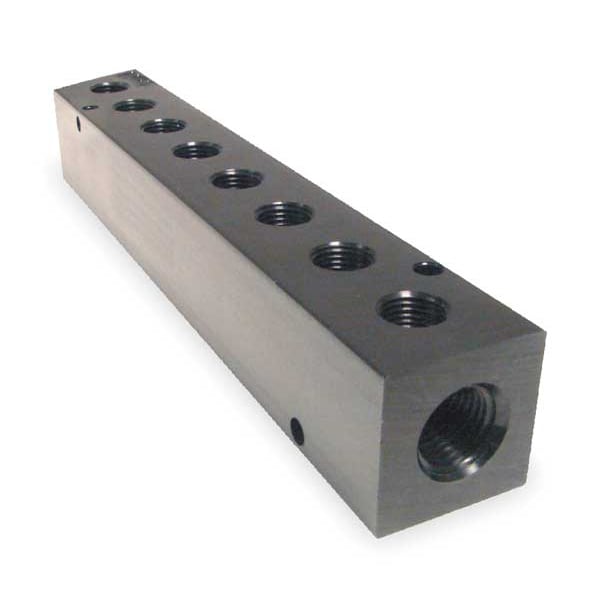

Manifold, Metal, NPT, 8-3/4 In. L

product price: $55.65
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Fitting Material Black Anodized Aluminum
  • Number of Inlets 2
  • Number of Outlets 8
  • Inlet Size 1/2 in
  • Outlet Size 3/8 in
See all product information

Product Information

Dimensions

Inlet Size 1/2 in
Outlet Size 3/8 in
Overall Length 8.75 in
Overall Width 1.5 in
Overall Height 1.5 in
Mounting Hole Size 0.2 in
Inlet Connection Size 1/2 in
Mounting Hole Diameter 0.2 in
Outlet Connection Size 3/8 in

Details

Item Manifold
Pipe Fitting Material Black Anodized Aluminum
Number of Inlets 2
Number of Outlets 8
Fitting Connection Type NPT
Pipe Fitting Connection Type NPT
Temp. Range -10 Degrees to 200 Degrees F
Max. Pressure 1000 psi
Minimum Operating Temperature -10 Degrees F
Outlet Spacing 1 in
Inlet Connection Gender Female
Manifold Material Grade 6061
Resistance Properties Corrosion Resistant, Wear Resistant
Manifold Material Finish Black Anodized
Manifold Shape Rectangle
Manifold Material Aluminum
Maximum Operating Temperature 200 Degrees F
Outlet Connection Type NPT
For Potable Water Use Yes
Outlet Connection Gender Female
Inlet Connection Type NPT
Maximum Operating Pressure 3,000 psi
Number of Mounting Holes 2
For Fluid Type Fluid, Gas
Flow Direction Inline

Description

Manifold, Flow Direction Inline, For Fluid Type Fluid, Gas, Inlet Connection Gender Female, Inlet Connection Size 1/2 in, Inlet Connection Type NPT, Manifold Material Aluminum, Manifold Material Finish Black Anodized, Manifold Material Grade 6061, Maximum Operating Pressure 3,000 psi, Maximum Operating Temperature 200 Degrees F, Minimum Operating Temperature -10 Degrees F, Number of Inlets 2, Number of Mounting Holes 2, Number of Outlets 8, Outlet Connection Gender Female

Restrictions

  • *** This is a restricted item in CA, LA, MD, VT. It cannot be used for potable water applications.
