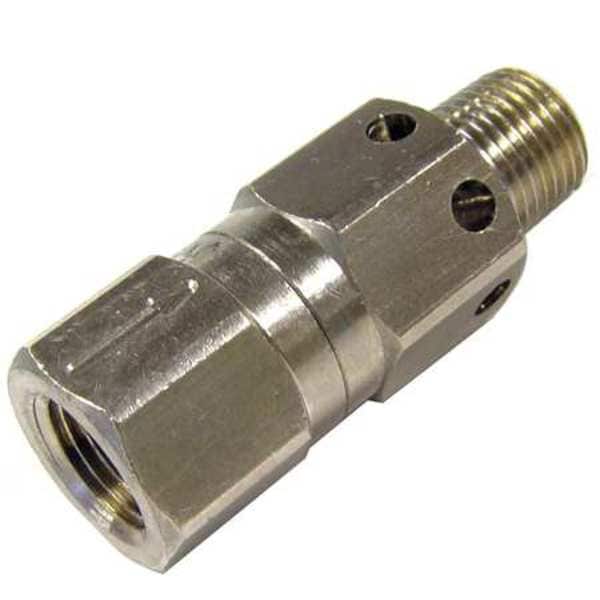

Quick Exhaust Valve, 1/8 In, NPT

product price: $29.79
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Size 1.54"
  • Max. Pressure 125 psi
  • Body Material Brass with Electroless Nickel
  • Length (In.) 1 27/50 in
  • Connection Type NPT
See all product information

Product Information

Dimensions

Pipe Size 1.54"
Length (In.) 1 27/50 in
Port Size (In.) 1/8 in
Overall Length 1 9/16 in
Air Outlet Size 1/8 in
Inlet Size 1/8 in

Details

Item Quick Exhaust
Max. Pressure 125 psi
Body Material Brass with Electroless Nickel
Connection Type NPT
CFM @ 75 PSI 14.7
Max. Temp. Range (F) -20 to 160
Coefficient of Volume 0.2 cfm
Seal Material Buna-n
Stem Material Brass
Max. Operating PSI 125 psi
Seat Material Buna-N
Temp. Range -20 Degrees to 160 Degrees F
Minimum Operating Pressure 0 psi
Maximum Operating Temperature 160 Degrees F
Air Outlet Type NPT
Minimum Operating Temperature -20 Degrees F
Air Outlet Gender Female
Air Inlet Type NPT
Body Material Finish Nickel Plated
Inlet Gender Male
Maximum Operating Pressure 125 psi

Description

Quick Exhaust, Maximum Operating Pressure 125 psi, Minimum Operating Pressure 0 psi, Inlet Size 1/8 in, Air Inlet Type NPT, Air Outlet Size 1/8 in, Air Outlet Type NPT, Coefficient of Volume 0.2 cfm, Inlet Gender Male, Air Outlet Gender Female, Body Material Finish Nickel Plated, Maximum Operating Temperature 160 Degrees F, Minimum Operating Temperature -20 Degrees F, Body Material Brass with Electroless Nickel, Overall Length 1 9/16 in
