  11. Toggle Valve, NC, 1/8 In, NPT, 2.16 In L

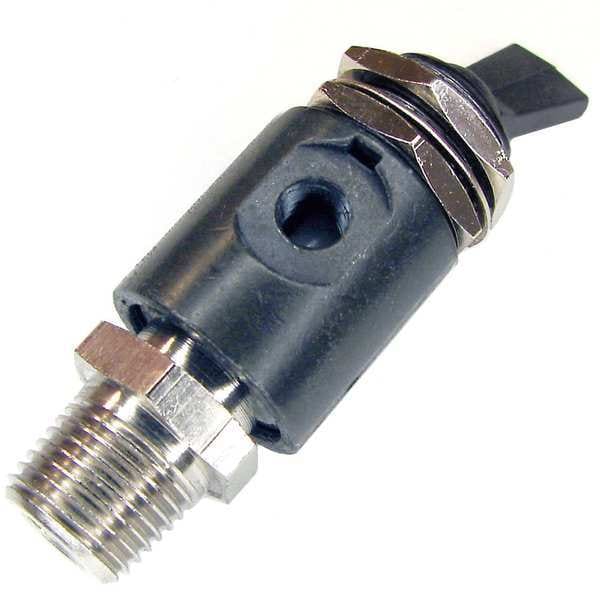

Pneumadyne Toggle Valve, NC, 1/8 In, NPT, 2.16 In L F0-30-1 - main

Toggle Valve, NC, 1/8 In, NPT, 2.16 In L

  • Mfr # F0-30-1

  • Zoro # G4264531

product price: $16.15
/ea

Key Features

Center Position
Closed
Coefficient of Volume
0.24
Number of Ways
Three-Way
Series
O
Overall Length
2 5/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
F0-30-1
Zoro #
G4264531
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
2 5/8 in
Pipe Size
1/8 x 10-32
Valve Port Connection Size
1/8 in x 10-32

Details

Item
Manual Air Control Valve
Center Position
Closed
Coefficient of Volume
0.24
Number of Ways
Three-Way
Series
O
Connection Type
NPT
Stem Material
brass
Valve Configuration
Normally Closed
Temp. Range
-20 Degrees to 160 Degrees F
Seal Material
Buna-N
Valve Design
3-Way
Handle Type
Spring Return Toggle
Max. Pressure
125 psi
Seat Material
Buna-N
Body Material
Aluminum, Brass
CFM @ 75 PSI
17.3 cfm
Valve Port Connection Type
NPT
Vacuum Rating
Vacuum Operable
Actuation Force @ 125 psi
0.38 lb
Valve Port Connection Gender
Female
Coefficient of Volume (Cv)
0.24
Actuator Type
Toggle
Operating Temperature - Maximum
160 Degrees F
Exhaust Port Connection Type
Unthreaded
Operating Pressure - Minimum
12.7 psi
Return Action
Spring Return
Operating Pressure - Maximum
125 psi
Flow Rate - Maximum
17.3 scfm
Force @ 50 psi
4 oz
Valve Action
Normally Closed
Product Type
Manual Air Control Valve
Operating Temperature - Minimum
-20 Degrees F
Exhaust Time
0.06 sec
Fill Time
0.02 sec

Description

Manual Air Control Valve, Connection NPT, Center Position Closed, Coefficient of Volume 0.24, Body Material Aluminum, Brass, Overall Length 2 5/8 in, Series O
