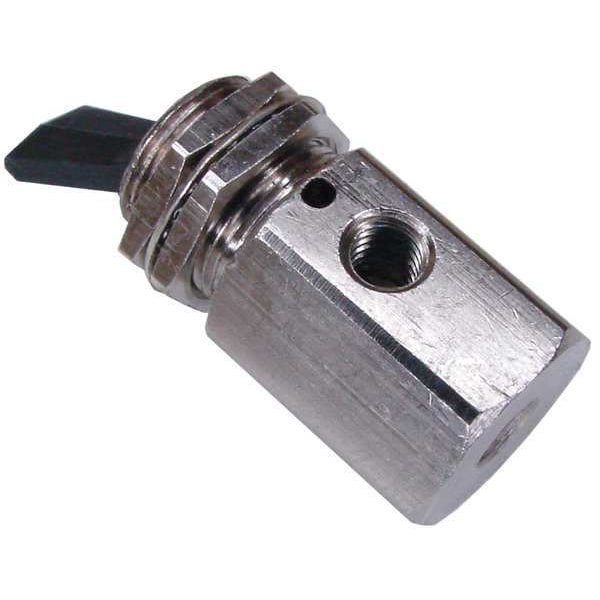

Pneumadyne Toggle Valve, NC, Brass C030101 - main

Toggle Valve, NC, Brass

  • Mfr # C030101

  • Zoro # G4262133

product price: $17.59
/ea

Key Features

Coefficient of Volume
0.2
Series
300
Number of Ways
Three-Way
Overall Height
9/16 in
Overall Length
1 11/16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C030101
Zoro #
G4262133
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
9/16 in
Overall Length
1 11/16 in
Overall Width
9/16 in
Pipe Size
10-32
Valve Port Connection Size
10-32

Details

Item
Manual Air Control Valve
Coefficient of Volume
0.2
Series
300
Number of Ways
Three-Way
Connection Type
UNF
CFM @ 75 PSI
15.5 cfm
Max. Pressure
125 psi
Seal Material
Buna-N
Temp. Range
-20 Degrees to 160 Degrees F
Valve Design
3-Way
Stem Material
brass
Handle Type
Detented Toggle
Valve Configuration
Normally Closed
Body Material
Brass
Seat Material
Buna-N
Product Type
Manual Air Control Valve
Return Action
Detent
Flow Rate - Maximum
15.5 scfm
Valve Action
Normally Closed
Valve Port Connection Gender
Female
Actuation Force @ 125 psi
0.69 lb
Operating Temperature - Minimum
-20 Degrees F
Vacuum Rating
Vacuum Operable
Actuator Type
Toggle
Operating Temperature - Maximum
160 Degrees F
Exhaust Port Connection Type
Unthreaded
Exhaust Time
0.04 sec
Operating Pressure - Minimum
12.7 psi
Force @ 50 psi
6 oz
Operating Pressure - Maximum
125 psi
Fill Time
0.02 sec
Coefficient of Volume (Cv)
0.2
Valve Port Connection Type
UNF

Description

Manual Air Control Valve, Connection 10-32, Coefficient of Volume 0.2, Body Material Brass, Overall Length 1 11/16 in, Overall Height 9/16 in, Overall Width 9/16 in, Series 300
