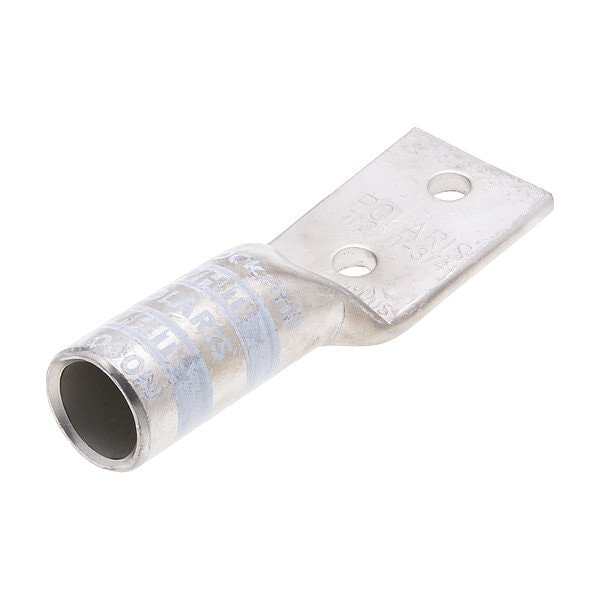

Compression Lugs, White, Copper
- Mfr # L1000N
- Zoro # G722785527
product price:Â
$
73.19
/ea
Sold in multiples of 3 for
$219.57
Key Features
For Stud Size
1/2 in
Maximum Voltage
600 V
For Conductor Material
Copper
Color Code
White
For Stranded Copper Wire Size - Maximum
1000 kcmil
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- L1000N
- Zoro #
- G722785527
- UPC #
- 662381035202
- Country of Origin
- India
- Maximum Voltage
- 600 V
- For Conductor Material
- Copper
- Color Code
- White
- Special Features
- High Conductivity Copper Tubing and Corrosion Resistant Tin-Plated Finish, Marked with Die Index and Color Coded
- Contact Finish
- Tin
- Hole Center to Center
- 1.75 in
- Seam Style
- Seamless
- Series
- LN
- Item
- Compression Lugs
- Material
- Copper
- Hole Center to End
- 0.63 in
- For Wire Type
- Stranded
- Tongue Angle
- Straight
- Termination Style
- Compression
- Tongue Style
- NEMA
- Barrel Style
- Chamfered
- Standards
- UL 486A-486B, UL/cULus
- Shell Material
- Copper
- Traction Material
- Copper
Dimensions
- For Stud Size
- 1/2 in
- For Stranded Copper Wire Size - Maximum
- 1000 kcmil
- Tongue Thickness
- 0.33 in
- Tongue Width
- 2.18 in
- Hole Size
- 0.51 in
- For Stranded Copper Wire Size - Minimum
- 750 kcmil
- Tongue Length
- 3.06 in
- Barrel Inside Diameter
- 1.19 in
- Barrel Size
- Long
- Wire Rope Length
- 6.88 in
- Barrel Outside Diameter
- 1.53 in
- Overall Width
- 2.18 in
- Strip Length
- 3 5/16 in
- Overall Length
- 6.88 in
- Length
- 6.88 in
Description
Compression Lugs, Barrel Size Long, Color Code White, Die Code Not Applicable, Tongue Angle Straight, Tongue Width 2.18 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 750 kcmil, For Stranded Copper Wire Size - Maximum 1000 kcmil, Hole Center to Center 1.75 in, Material Copper, Maximum Voltage 600 V, Termination Style Compression, Seam Style Seamless, Standards UL 486A-486B, UL/cULus, Number of Holes 2, Barrel Inside Diameter 1.19 in
