  11. Insulated Multitap Connector, 1.07 In. L
This item is Discontinued.

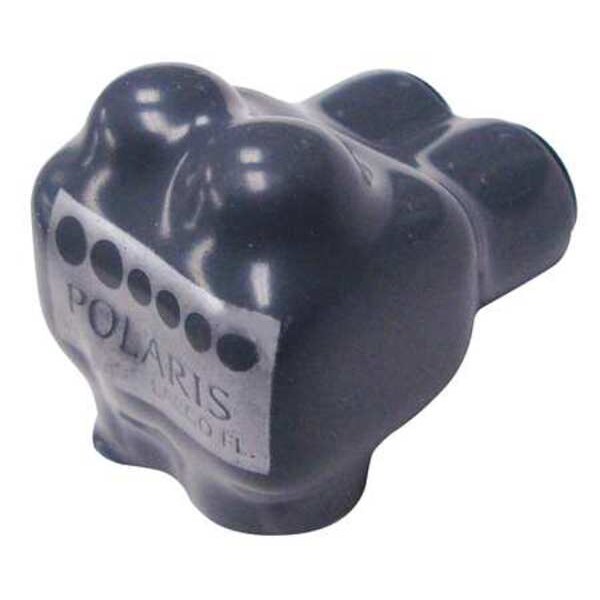

Polaris Insulated Multitap Connector, 1.07 In. L ITG-6B

Insulated Multitap Connector, 1.07 In. L (Discontinued)

  • Mfr # ITG-6B
  • Zoro # G4191957
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ITG-6B
Zoro #
G4191957
UPC #
662381959409
Country of Origin
United States

Dimensions

Min. Conductor Size
14 AWG
Max. Conductor Size
6 AWG
Stud Size
1/8 in
Length
1.07 in
Width
1.12 in
Length (Straight Wireway)
1.07 in
Overall Width
1.24 in
For Stranded Copper Wire Size - Minimum
14 AWG
Strip Length
11/16 in
Hex Size
1/8 in
For Stranded Copper Wire Size - Maximum
6 AWG
Overall Length
1.13 in
Wire Size Range
14 AWG - 6 AWG
For Wire Size
10 AWG, 12 AWG, 14 AWG, 6 AWG, 8 AWG

Details

Item
Insulated Multitap Connector
Connector Type
Single-Sided Entry
No. of Ports
2
Insulation Material
Plastisol
Screw Material
Steel
Max. Voltage
600V AC/DC
Direct Burial Rated
No
Body Material
Aluminum
Standards
cULus, UL 486A
Head Style
Hex
Finish
Plastisol
Number of Ports
2
For Conductor Material
Copper
Screw Finish
Tin Plated
Maximum Operating Temperature
194 Degrees F
Minimum Operating Temperature
-49 Degrees F
RoHS Compliant
Yes
Tap Shape
L
Color
Gray
Compatible with Product Type
Fine Stranded Cooper Conductor
Maximum Voltage
600 V
Torque
45 in-lb
Special Features
Abrasion and Chemical Resistant, Factory Applied Insulation Provides Consistent Quality and Protection, Fast: Eliminates the Need for Cover and Taping - Supplied With Removable Access Plugs Over the Hex Screws to Protect Against Contamination, Reusable: Ideal for Cabletrays, Troughs, Wire-Ways, Raceways, Ducts and Motor Junction Boxes for Fine Stranded Conductor Applications, Safe: Insulated With High Dielectric Strength Plastisol for Tough Mechanical Protection

Description

Insulated Multitap Connector, Body Material Aluminum, Color Gray, Finish Plastisol, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 6 AWG, Head Style Hex, Hex Size 1/8 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 2, RoHS Compliant Yes, Standards cULus, UL 486A, Compatible with Product Type Fine Stranded Cooper Conductor
