  11. Insulated Multitap Connector, 1.62 In. L, Head Style: Hex
This item is Discontinued.

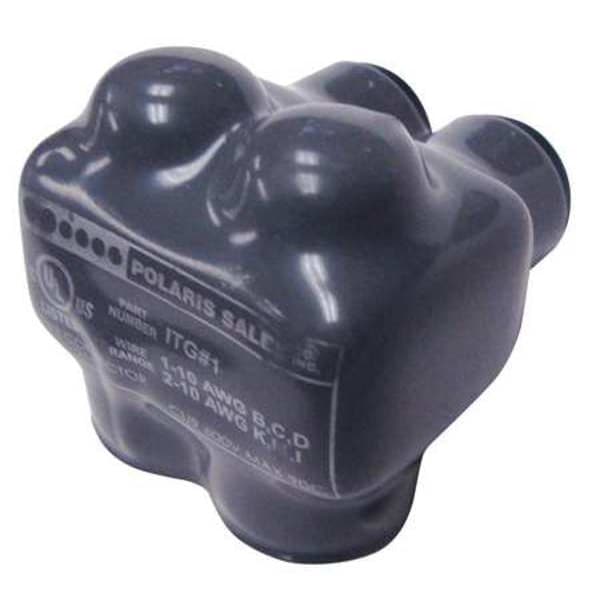

Polaris Insulated Multitap Connector, 1.62 In. L, Head Style: Hex ITG-1B

Insulated Multitap Connector, 1.62 In. L, Head Style: Hex (Discontinued)

  • Mfr # ITG-1B
  • Zoro # G4108431
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ITG-1B
Zoro #
G4108431
UPC #
662381959461
Country of Origin
United States

Dimensions

Min. Conductor Size
10 AWG
Max. Conductor Size
1 AWG
Stud Size
3/16 in
Length
1.62 in
Width
1.62 in
Length (Straight Wireway)
1.62 in
For Wire Size
10 AWG, 2 AWG, 4 AWG, 6 AWG, 8 AWG
Strip Length
7/8 in
For Stranded Copper Wire Size - Maximum
2 AWG
Overall Length
1.6 in
Hex Size
3/16 in
Wire Size Range
10 AWG - 2 AWG
For Stranded Copper Wire Size - Minimum
10 AWG
Overall Width
1.55 in

Details

Item
Insulated Multitap Connector
Connector Type
Single-Sided Entry, L
No. of Ports
2
Insulation Material
Plastisol
Screw Material
Aluminum
Body Material
Aluminum
Head Style
Hex
Standards
California Title 24 Compliant, UL486A/B
Max. Voltage
600V AC/DC
Direct Burial Rated
No
For Conductor Material
Copper
Compatible with Product Type
Fine Stranded Cooper Conductor
Maximum Operating Temperature
194 Degrees F
Maximum Voltage
600 V
Finish
Plastisol
Torque
150 in-lb
Number of Ports
2
Color
Gray
Special Features
Abrasion and Chemical Resistant, Factory Applied Insulation Provides Consistent Quality and Protection, Fast: Eliminates the Need for Cover and Taping - Supplied With Removable Access Plugs Over the Hex Screws to Protect Against Contamination, Reusable: Ideal for Cabletrays, Troughs, Wire-Ways, Raceways, Ducts and Motor Junction Boxes for Fine Stranded Conductor Applications, Safe: Insulated With High Dielectric Strength Plastisol for Tough Mechanical Protection
Minimum Operating Temperature
-49 Degrees F
Tap Shape
L

Description

Insulated Multitap Connector, Body Material Aluminum, Color Gray, Finish Plastisol, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 10 AWG, For Stranded Copper Wire Size - Maximum 2 AWG, Head Style Hex, Hex Size 3/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 2, Standards cULus, UL 486A, Compatible with Product Type Fine Stranded Cooper Conductor, Connector Type Single-Sided Entry
