Polaris

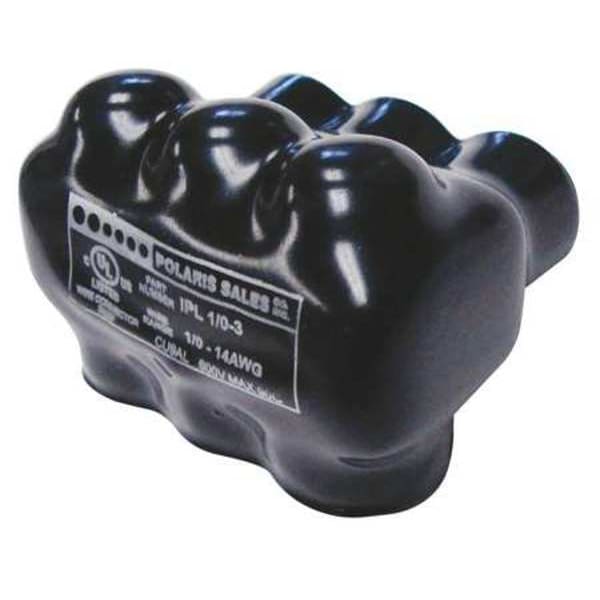

Insulated Multitap Connector, 1.62 In. W

product price: $31.79
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Connector Type Single-Sided Entry
  • No. of Ports 3
  • Min. Conductor Size 14 AWG
  • Max. Conductor Size 1/0 AWG
  • Insulation Material Plastisol
See all product information

Product Information

Dimensions

Min. Conductor Size 14 AWG
Max. Conductor Size 1/0 AWG
Stud Size 3/16 in
Length 2.27 in
Width 1.62 in
Length (Straight Wireway) 2.27 in
For Wire Size 1 AWG, 1/0 AWG, 10 AWG, 12 AWG, 14 AWG, 2 AWG, 4 AWG, 6 AWG, 8 AWG
Strip Length 1 1/16 in
For Stranded Copper Wire Size - Maximum 1/0 AWG
Overall Width 1.5 in
Hex Size 3/16 in
For Stranded Copper Wire Size - Minimum 14 AWG
Overall Length 2.24 in
Conductor Cu Size Range 1/0 AWG – 14 AWG
Conductor Al Size Range 1/0 AWG – 12 AWG
Hex Wrench Size 3/16

Details

Item Insulated Multitap Connector
Connector Type Single-Sided Entry
No. of Ports 3
Insulation Material Plastisol
Body Material Aluminum
Standards cULus, UL 486B
Max. Voltage 600V AC/DC
Direct Burial Rated No
Head Style Hex
Screw Material Aluminum
Color Black
RoHS Compliant Yes
Compatible with Product Type Copper and Aluminum Cables
Special Features Abrasion and Chemical Resistant, Eliminates the Need for Cover and Taping, Insulated With High-Dielectric Strength Plastisol, Molded for Precise Fit and Supplied With Removable Access Plugs Over the Hex Screws, UV Resistant, Will Not Support Combustion, Wire Entry Ports on One Side Only
Minimum Operating Temperature -49 Degrees F
Tap Shape L
For Conductor Material Aluminum, Copper
Finish Plastisol
Maximum Operating Temperature 194 Degrees F
Number of Ports 3
Torque 180 in-lb
Maximum Voltage 600 V
Max Torque 80
Temp Rating 90C, AL9CU
Al Conductor Max Amp 135
Env Temp Cold Temperature rated to -45C
Conductor Type Copper, Aluminum
Ul Standard UL 486A/B
Ul File No E186991
Cu Conductor Max Amp 170
Conductors Count 3
Certifications cULus
Wire Cable Class Class B, Class C
Assortment Black UV Coated Pre-Insulated Connectors

Description

Insulated Multitap Connector, Body Material Aluminum, Color Black, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 1/0 AWG, Head Style Hex, Hex Size 3/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 3, RoHS Compliant Yes, Standards cULus, UL 486B, Compatible with Product Type Copper and Aluminum Cables
