  11. Insulated Multitap Connector, 1.84 In. L
This item is Discontinued.

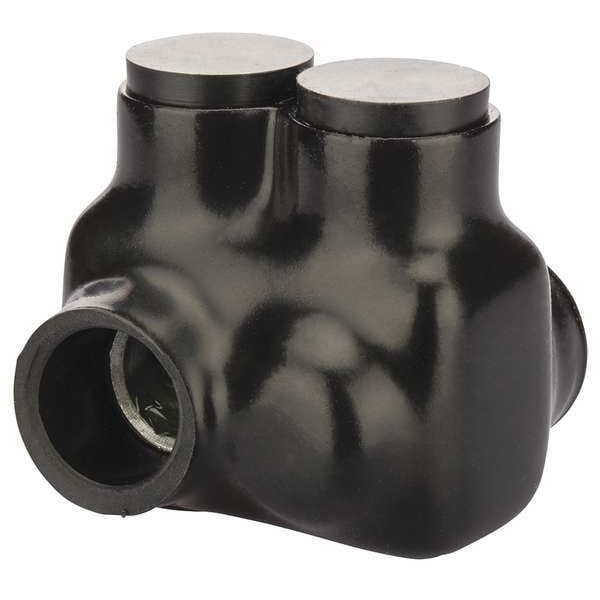

Polaris Insulated Multitap Connector, 1.84 In. L ITO-3/0B

Insulated Multitap Connector, 1.84 In. L (Discontinued)

  • Mfr # ITO-3/0B
  • Zoro # G9109947
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ITO-3/0B
Zoro #
G9109947
UPC #
662381953094
Country of Origin
United States

Dimensions

Min. Conductor Size
6 AWG
Max. Conductor Size
3/0 AWG
Stud Size
1/4 in
Length
1.84 in
Width
1.87 in
Length (Straight Wireway)
1.84 in
Overall Length
1.84 in
Hex Size
1/4 in
For Stranded Copper Wire Size - Minimum
6 AWG
Strip Length
1 1/8 in
Overall Width
1.87 in
For Stranded Copper Wire Size - Maximum
3/0 AWG
Wire Size Range
6 AWG - 3/0 AWG
For Wire Size
1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 3/0 AWG, 4 AWG, 6 AWG

Details

Item
Insulated Multitap Connector
Connector Type
Double-Sided Entry, Z
No. of Ports
2
Insulation Material
Plastisol
Head Style
Hex
Screw Material
Steel
Max. Voltage
600V AC/DC
Body Material
Aluminum
Standards
California Title 24 Compliant, UL486A/B
Direct Burial Rated
No
Color
Black
Maximum Voltage
600 V
Special Features
Abrasion and Chemical Resistant, Insul-Tap Connectors, Suitable for Connecting Two Wires, UV Resistant, Will Not Support Combustion
Number of Ports
2
Torque
250 in-lb
Tap Shape
Z
For Conductor Material
Aluminum, Copper
Screw Finish
Tin Plated
RoHS Compliant
Yes
Maximum Operating Temperature
194 Degrees F
Minimum Operating Temperature
-49 Degrees F
Finish
Plastisol
Compatible with Product Type
Copper and Aluminum Cables

Description

Insulated Multitap Connector, Body Material Aluminum, Color Black, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 3/0 AWG, Head Style Hex, Hex Size 1/4 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 2, RoHS Compliant Yes, Standards cULus, UL 486B, Compatible with Product Type Copper and Aluminum Cables
