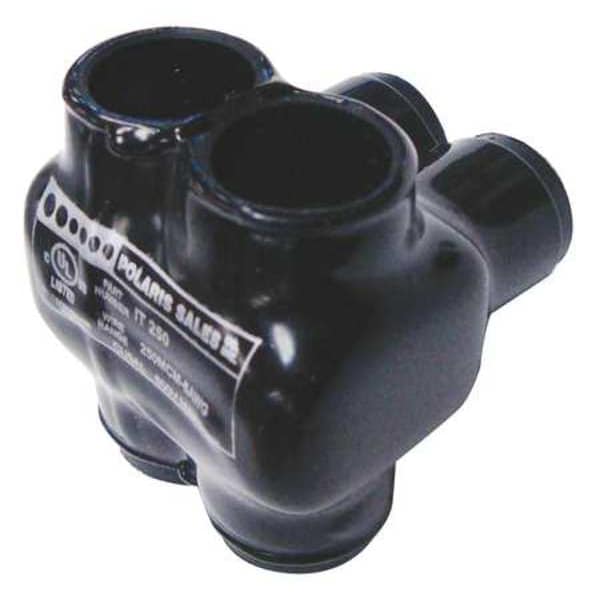

Insulated Multitap Connector, 2.13 In. L, Width: 2.31 in
Mfr # IT-250B
Zoro # G4054714
product price: $44.39
/eaKey Features
Connector Type
Double-Sided Entry
For Wire Size
250 kcmil
Number of Ports
2
For Conductor Material
Aluminum, Copper
Body Material
Aluminum
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
IT-250B
Zoro #
G4054714
UPC #
662381953049
Country of Origin
United States
Dimensions
For Wire Size
250 kcmil
Hex Size
5/16 in
Min. Conductor Size
6 AWG
Width
2.31 in
Max. Conductor Size
250 kcmil
Length
2.13 in
Stud Size
5/16 in
Length (Straight Wireway)
2.13 in
Overall Width
2.25 in
For Stranded Copper Wire Size - Maximum
250 kcmil
Strip Length
1 3/8 in
Overall Length
2.12 in
For Stranded Copper Wire Size - Minimum
6 AWG
Conductor Cu Size Range
250 MCM – 6 AWG
Hex Wrench Size
5/16
Conductor Al Size Range
250 MCM – 6 AWG
Description
Multitap Connector, Body Material Aluminum, Color Black, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 250 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 2, UL 94 Flammability Rating Not Applicable, RoHS Compliant Yes, Standards cULus, UL 486B
