Polaris

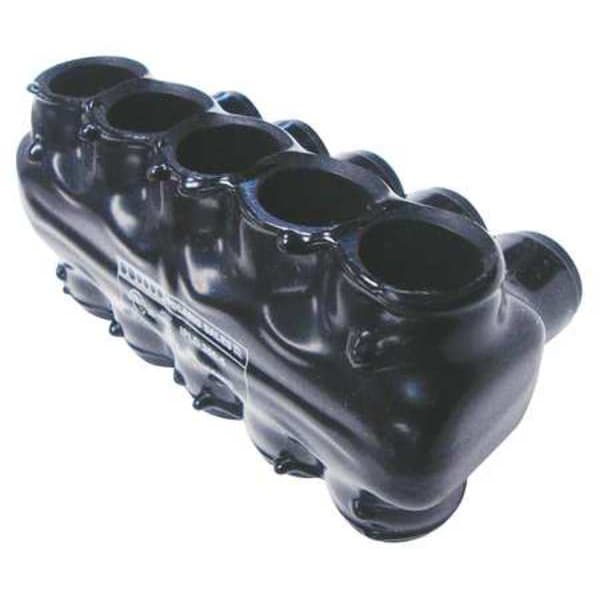

Insulated Multitap Connector, 4.71 In. L

product price: $62.35
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Connector Type Double-Sided Entry
  • No. of Ports 5
  • Min. Conductor Size 6 AWG
  • Max. Conductor Size 250 kcmil
  • Insulation Material Plastisol
See all product information

Product Information

Dimensions

Min. Conductor Size 6 AWG
Max. Conductor Size 250 kcmil
Stud Size 5/16 in
Length 4.71 in
Width 2.31 in
Length (Straight Wireway) 4.71 in
Overall Width 2.28 in
For Stranded Copper Wire Size - Maximum 250 kcmil
For Stranded Copper Wire Size - Minimum 6 AWG
Strip Length 1 3/8 in
For Wire Size 1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 4 AWG, 4/0 AWG, 6 AWG
Hex Size 5/16 in
Overall Length 4.66 in
Conductor Cu Size Range 250 MCM-6 AWG
Hex Wrench Size 5/16
Conductor Al Size Range 250 MCM-6 AWG

Details

Item Insulated Multitap Connector
Connector Type Double-Sided Entry
No. of Ports 5
Insulation Material Plastisol
Screw Material Aluminum
Body Material Aluminum
Head Style Hex
Max. Voltage 600V AC/DC
Direct Burial Rated No
Standards cULus, UL 486A
Compatible with Product Type Copper and Aluminum Cables
Maximum Operating Temperature 194 Degrees F
Minimum Operating Temperature -49 Degrees F
RoHS Compliant Yes
For Conductor Material Aluminum, Copper
Color Black
Number of Ports 5
Finish Plastisol
Special Features Abrasion and Chemical Resistant, Eliminates the Need for Cover and Taping, Insulated With High-Dielectric Strength Plastisol, Molded for Precise Fit and Supplied With Removable Access Plugs Over the Hex Screws, Supplied With Removable Plugs to Close the Entry Port Not Being Utilized, UV Resistant, Will Not Support Combustion, Wire Entry Ports on Both Sides of the Connector Allow for Access From Either Side
Maximum Voltage 600 V
Tap Shape Z
Torque 360 in-lb
Env Temp Cold Temperature rated to -45C
Conductors Count 5
Wire Cable Class Class B, Class C
Max Torque 360
Al Conductor Max Amp 410
Application Splice, Tap
Conductor Type Copper, Aluminum
Assortment Black UV Coated Pre-Insulated Connectors
Certifications cULus
Cu Conductor Max Amp 527
Ul File No E186991
Temp Rating 90C, AL9CU
Ul Standard UL 486A/B

Description

Insulated Multitap Connector, Body Material Aluminum, Color Black, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 250 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 5, RoHS Compliant Yes, Standards cULus, UL 486A, Compatible with Product Type Copper and Aluminum Cables
