  11. Multitap Connector, 3 Port, Black, Plastisol Insulation

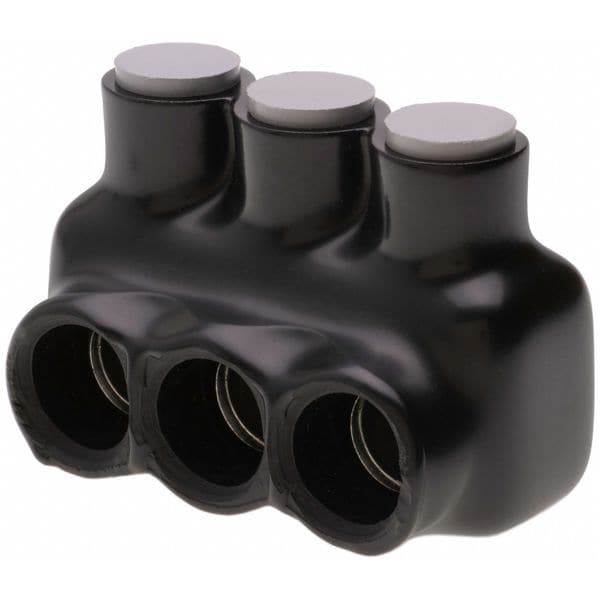

Polaris Multitap Connector, 3 Port, Black, Plastisol Insulation IPLG3/0-3B - main

Multitap Connector, 3 Port, Black, Plastisol Insulation

  • Mfr # IPLG3/0-3B

  • Zoro # G105715325

product price: $32.39
/ea

Key Features

Number of Ports
3
Maximum Wire Size
3/0 AWG
For Conductor Material
Copper
Minimum Wire Size
4 AWG
Maximum Voltage
600 V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IPLG3/0-3B
Zoro #
G105715325
UPC #
-
Country of Origin
United States

Dimensions

Maximum Wire Size
3/0 AWG
Minimum Wire Size
4 AWG
Hex Size
3/16 in
Hex Wrench Size
3/16
For Minimum Wire Size - Stranded
4 AWG
For Maximum Wire Size - Stranded
3/0 AWG

Details

Item
Multitap Connector
Number of Ports
3
For Conductor Material
Copper
Maximum Voltage
600 V
Insulation Material
Plastisol
Current
225 A
Head Style
Hex
Finish
Insulated
Color
Black
Maximum Operating Temperature
194 Degrees F
RoHS Compliant
Yes
Standards
UL E186991, UL 746C, UL Listed 486A/B
Application
Wire Termination
Material
Plastisol
Cu Conductor Max Amp
225
Max Torque
250
Wire Cable Class
Class B, Class C, Class D, Class G, Class H, Class I, Class K, Class M, Class DLO
Maximum Conductors
3
Connector Type
Single-Sided Entry

Description

Multitap Connector, Body Material Aluminum, Color Black, Finish Plastisol, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 3/0 AWG, Head Style Hex, Hex Size 3/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 3, UL 94 Flammability Rating Not Applicable, RoHS Compliant Yes, Standards UL 746C 750 Degrees C Glow Wire, UL Listed 486A/B Wire Connector
