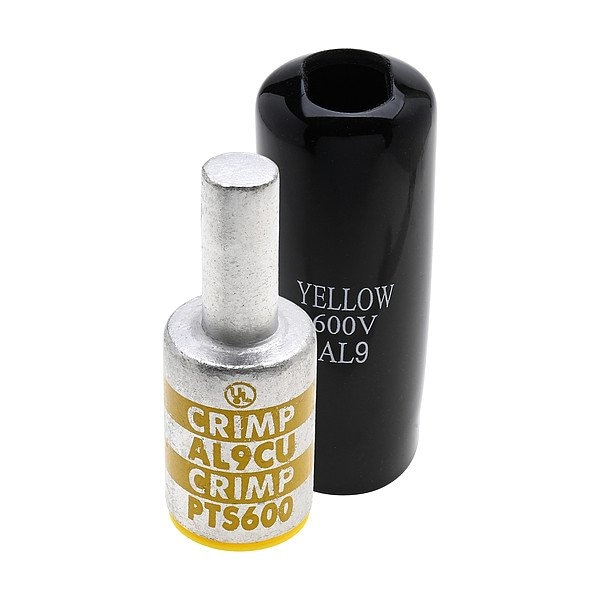

Pin Terminal, 600 V, Rubber Insulated, Yellow
Mfr # PTS600
Zoro # G615890925
product price: $71.25
/eaKey Features
Insulation Color
Yellow
Insulation Type
Rubber
Contact Material
Aluminum
Maximum Voltage
600 V
Maximum Operating Temperature
194 Degrees F
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
PTS600
Zoro #
G615890925
UPC #
662381033635
Country of Origin
India
Dimensions
Overall Length
3.67 in
Pin Diameter
0.73 in
Pin Length
1.64 in
Barrel Length
2.03 in
Strip Length
1 13/16 in
Barrel Diameter
1.46 in
Pin Equivalent Wire Size
400 kcmil
Details
Item
Pin Terminal
Insulation Color
Yellow
Insulation Type
Rubber
Contact Material
Aluminum
Maximum Voltage
600 V
Maximum Operating Temperature
194 Degrees F
Standards
UL Listed; UL 486A-486B
Compatible Installation Tool Model Number
CD23
Contact Finish
Tin
Color Code
Yellow
Insulation Material
Rubber
For Conductor Material
Aluminum, Copper
Description
Compression Pin Terminal, Connection Orientation Straight, Die Code Not Applicable, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Maximum 600 kcmil, Insulation Material Not Applicable, Maximum Voltage 600 V, Pin Diameter 0.73 in, Pin Equivalent Wire Size 400 kcmil, Pin Length 1.64 in, Contact Finish Tin, Contact Material Aluminum, Barrel Diameter 1.46 in, Barrel Length 2.03 in, Color Code Yellow, Compatible Installation Tool Model Number CD23, Overall Length 3.67 in
