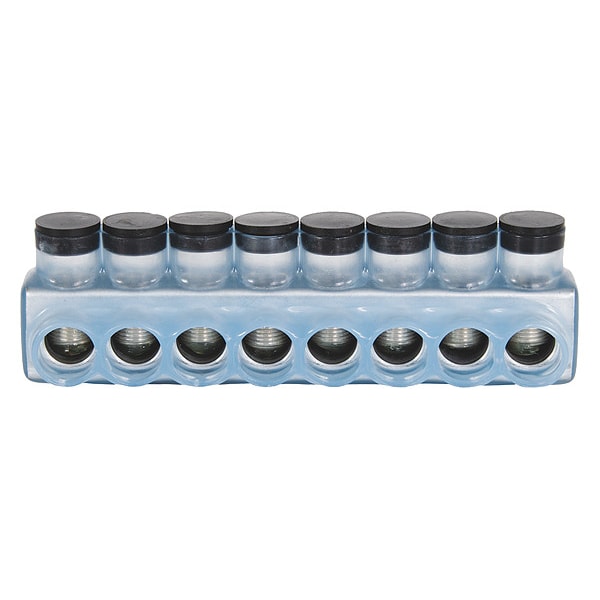

Polaris Multi-Tap Connector, 8 Port
Mfr # IPLD500-8CB
Zoro # G5805319
product price: $158.99
/ea
Free Shipping & Returns
Key Features
Connector Type
Double-Sided Entry
For Wire Size
500 kcmil
Number of Ports
8
For Conductor Material
Aluminum, Copper
Body Material
Aluminum
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
IPLD500-8CB
Zoro #
G5805319
UPC #
662381368997
Country of Origin
United States
Dimensions
For Wire Size
500 kcmil
Hex Size
5/16 in
Width
2.83 in
Overall Length
9.82 in
Length
9.82 in
Min. Conductor Size
4 AWG
Stud Size
5/16 in
Max. Conductor Size
550 kcmil
Length (Straight Wireway)
9.82 in
Strip Length
1 3/4 in
For Stranded Copper Wire Size - Maximum
500 kcmil
Overall Width
2.83 in
For Stranded Copper Wire Size - Minimum
4 AWG
Hex Wrench Size
5/16
Conductor Cu Size Range
500 MCM-4 AWG
Conductor Al Size Range
500 MCM-4 AWG
For Minimum Wire Size - Stranded
4 AWG
Minimum Wire Size
4 AWG
Maximum Run Wire Size
550 kcmil
For Minimum Wire Size - Solid
4 AWG
Minimum Run Wire Size
4 AWG
Description
Multitap Connector, Body Material Aluminum, Color Clear, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 500 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 8, UL 94 Flammability Rating Not Applicable, RoHS Compliant Yes, Standards cULus, UL 486A, UL 486B
