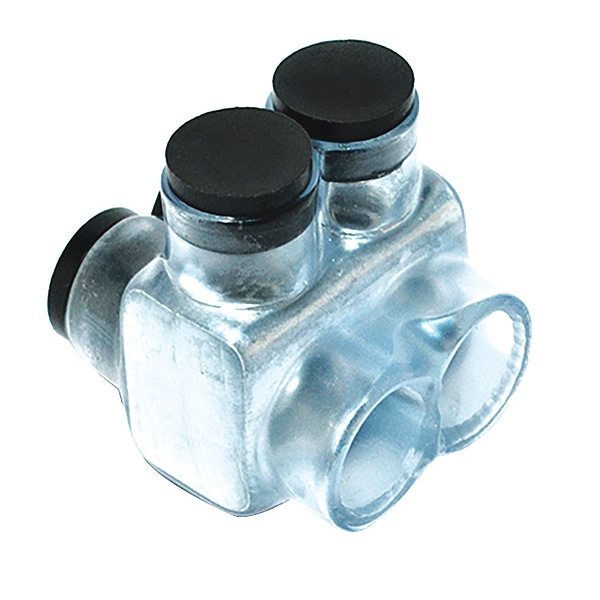

Polaris Multi-Tap Connector, Insulated
Mfr # IT-500CB
Zoro # G5805538
product price: $101.99
/ea
Free Shipping & Returns
Key Features
Connector Type
Double-Sided Entry
For Wire Size
500 kcmil
Number of Ports
2
For Conductor Material
Aluminum, Copper
Body Material
Aluminum
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
IT-500CB
Zoro #
G5805538
UPC #
662381369147
Country of Origin
United States
Dimensions
For Wire Size
500 kcmil
Hex Size
5/16 in
Length
2.81 in
Width
2.87 in
Overall Length
2.81 in
Min. Conductor Size
6 AWG
Max. Conductor Size
500 kcmil
Stud Size
5/16 in
Length (Straight Wireway)
2.81 in
For Stranded Copper Wire Size - Minimum
4 AWG
For Stranded Copper Wire Size - Maximum
500 kcmil
Overall Width
2.87 in
Strip Length
1 3/4 in
Conductor Cu Size Range
500 MCM – 4 AWG
Conductor Al Size Range
500 MCM – 4 AWG
Hex Wrench Size
5/16
Maximum Wire Size
500 kcmil
Minimum Wire Size
6 AWG
For Minimum Wire Size - Solid
6 AWG
Minimum Run Wire Size
6 AWG
Maximum Run Wire Size
500 kcmil
Description
Multitap Connector, Body Material Aluminum, Color Clear, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 500 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 2, UL 94 Flammability Rating Not Applicable, RoHS Compliant Yes, Standards cULus, UL 486A, UL 486B
