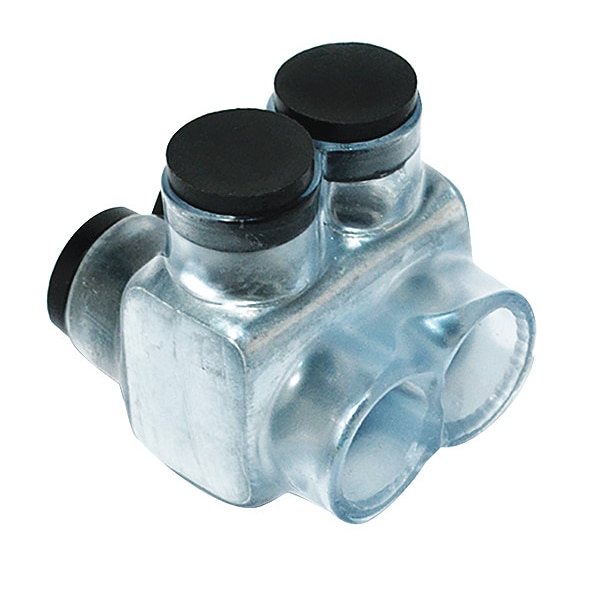

Polaris Multi-Tap Connector, Insulated
Mfr # IT-750CB
Zoro # G5805583
product price: $130.99
/ea
Free Shipping & Returns
Key Features
Connector Type
Double-Sided Entry
For Wire Size
750 kcmil
Number of Ports
2
For Conductor Material
Aluminum, Copper
Body Material
Aluminum
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
IT-750CB
Zoro #
G5805583
UPC #
662381369161
Country of Origin
United States
Dimensions
For Wire Size
750 kcmil
Hex Size
3/8 in
Length
3.48 in
Width
3.5 in
Overall Length
3.48 in
Min. Conductor Size
250 kcmil
Max. Conductor Size
750 kcmil
Stud Size
3/8 in
Length (Straight Wireway)
3.48 in
For Stranded Copper Wire Size - Minimum
250 kcmil
Overall Width
3.5 in
Strip Length
2 in
For Stranded Copper Wire Size - Maximum
750 kcmil
Conductor Cu Size Range
750 MCM – 1/0 AWG
Hex Wrench Size
3/8
Conductor Al Size Range
750 MCM – 1/0 AWG
Maximum Wire Size
750 kcmil
For Maximum Wire Size - Stranded
750 kcmil
For Minimum Wire Size - Solid
250 kcmil
For Maximum Wire Size - Solid
750 kcmil
For Minimum Wire Size - Stranded
250 kcmil
Description
Multitap Connector, Body Material Aluminum, Color Clear, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 250 kcmil, For Stranded Copper Wire Size - Maximum 750 kcmil, Head Style Hex, Hex Size 3/8 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 2, UL 94 Flammability Rating Not Applicable, RoHS Compliant Yes, Standards cULus, UL 486A, UL 486B
