Shop POLARIS

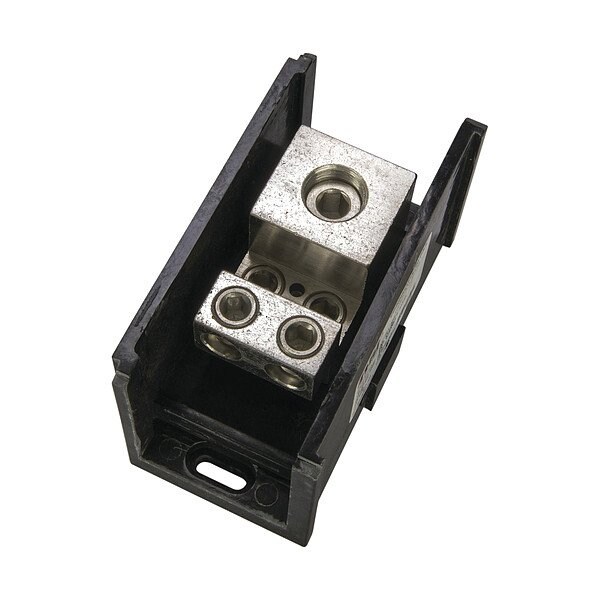

PowerDistributionBlock, 380A, 600V, 4Poles

  • Mfr # AL-R1-M4

  • Zoro # G516267161

product price:  $63.35
/ea

Key Features

For Conductor Material
Aluminum, Copper
Maximum Current - Aluminum Conductor
10,000 A
Maximum Voltage
600 V
Line Connections/Pole
1
Load Connections/Pole
4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
AL-R1-M4
Zoro #
G516267161
UPC #
662381165480
Country of Origin
United States

Dimensions

For Line Aluminum Wire Size - Minimum
500 MCM
For Load Aluminum Wire Size - Minimum
4/0 AWG
For Line Aluminum Wire Size - Maximum
4 AWG
For Load Aluminum Wire Size - Maximum
6 AWG
Overall Width
2.9 in
Overall Depth
3.25 in
Overall Length
5.5 in
For Load Copper Wire Size - Minimum
14 AWG
For Line Copper Wire Size - Maximum
500 kcmil
For Line Copper Wire Size - Minimum
4 AWG
For Load Copper Wire Size - Maximum
2/0 AWG

Details

Item
Power Distribution Block
For Conductor Material
Aluminum, Copper
Maximum Current - Aluminum Conductor
10,000 A
Maximum Voltage
600 V
Line Connections/Pole
1
Load Connections/Pole
4
Line Side Connection Type
Lug
Load Side Connection Type
Lug
Terminal Material
Aluminum
Housing Material
Glass-Filled Polycarbonate
Standards
CSA Certified, UL Recognize
Housing Color
Black
Special Features
Each Block can Stand Alone or Combine with other Blocks to Form a Multi-Block Set
Maximum Current - Copper Conductor
380 A
Secondary Wire Range
4/0 to 6 AWG
Primary Wire Range
500 MCM to 4 AWG
Number of Poles
4
Power Distribution Block Design
Open

Description

Power Distribution Block, For Conductor Material Aluminum, Copper, Line Connections/Pole 1, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 4 AWG, For Line Copper Wire Size - Maximum 500 kcmil, Load Connections/Pole 4, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 2/0 AWG, Maximum Current - Copper Conductor 380 A, Maximum Voltage 600 V, Mounting Type Surface, Number of Poles 4, Overall Depth 3.25 in
