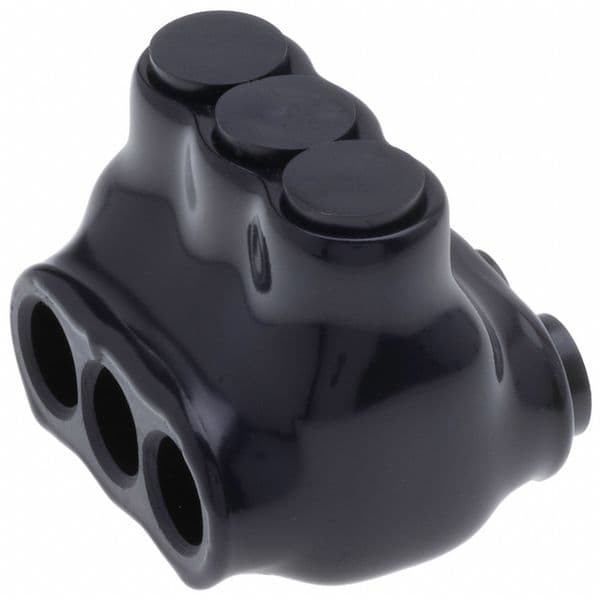

Wire Connector, 3 Port, Black, Plastisol Insulation

  • Mfr # IPLD4-3B

  • Zoro # G605715290

product price:
$
25.15
/ea

Key Features

Connector Type
Double-Sided Entry
For Wire Size
4 AWG
Number of Ports
3
For Conductor Material
Aluminum, Copper
Body Material
Aluminum
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
IPLD4-3B
Zoro #
G605715290
UPC #
-
Country of Origin
United States
Item
Multitap Connector
Connector Type
Double-Sided Entry
Number of Ports
3
For Conductor Material
Aluminum, Copper
Body Material
Aluminum
Insulation Material
Plastisol
Torque
35 IN/LBS
Head Style
Hex
Finish
Plastisol
Color
Black
Maximum Operating Temperature
194 Degrees F
Standards
UL 746C 750 Degrees C Glow Wire, UL Listed 486A/B Wire Connector
Material
Aluminum
Application
Splice, Tap
RoHS Compliant
Yes
Maximum Voltage
600 V
Cu Conductor Max Amp
95
Conductor Type
Copper, Aluminum
Env Temp
Cold Temperature rated to -45C
Al Conductor Max Amp
75
Max Torque
35
Ul Standard
UL 486A/B
Ul File No
E186991
Wire Cable Class
Class B, Class C
Certifications
cULus
Conductors Count
3
Assortment
Black UV Coated Pre-Insulated Connectors
Temp Rating
90C, AL9CU
Maximum Conductors
3
Direct Burial Rated
No

Description

Multitap Connector, Body Material Aluminum, Color Black, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, Head Style Hex, Hex Size 1/8 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 3, UL 94 Flammability Rating Not Applicable, RoHS Compliant Yes, Standards UL 746C 750 Degrees C Glow Wire, UL Listed 486A/B Wire Connector
