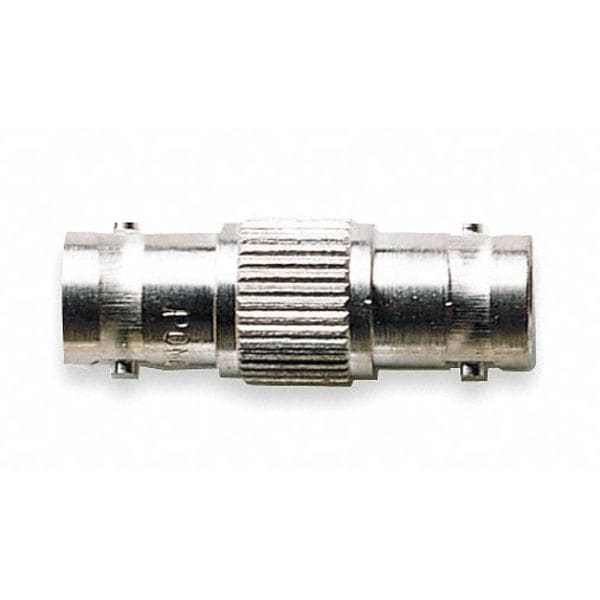

Pomona Electronics Adapter, Bnc 3283 - main

Adapter, Bnc

  • Mfr # 3283

  • Zoro # G1873487

product price: $9.15
/ea

Key Features

Length
1.32"
Temperature Range
-85 Degrees to 329 Degrees F
Voltage Rating
30V AC/60V DC
Contact Material
Gold Plated Beryllium Copper
Body Material
Nickel Plated Brass
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3283
Zoro #
G1873487
UPC #
095969109826
Country of Origin
China

Dimensions

Length
1.32"

Details

Item
BNC Adapter
Temperature Range
-85 Degrees to 329 Degrees F
Voltage Rating
30V AC/60V DC
Contact Material
Gold Plated Beryllium Copper
Body Material
Nickel Plated Brass
Adapter Type
Female to Female
Product Type
Straight Plug Adapter
Impedance
50 ohm
Stackability
Not Stackable
Insulation Material
PTFE
End 1 Body Finish
Nickel-Plated
Voltage Rating - Maximum
60 V DC
Operating Temperature - Minimum
-85 Degrees F
Operating Temperature - Maximum
329 Degrees F
Panel Mounted
Not Panel Mounted
End 2 Body Finish
Nickel-Plated
End 1 Contact Material
Copper
End 2 Connection Type
BNC Female
End 1 Body Material
Brass
End 1 Connection Type
BNC Female
End 2 Contact Material
Copper
End 1 Contact Finish
Gold-Plated
End 2 Contact Finish
Gold-Plated
End 2 Body Material
Brass

Description

BNC Adapter, Female to Female, Voltage Rating 30V AC/60V DC, Body Material Nickel Plated Brass, Contact Material Gold Plated Beryllium Copper
