  9. Banana Plug, 300VDC, 20A, 2-5/9 In. L, Red
This item is Discontinued.

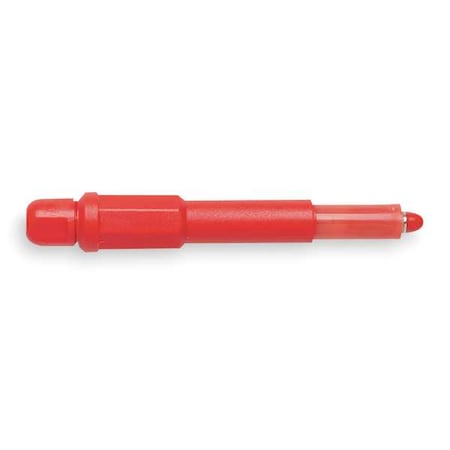

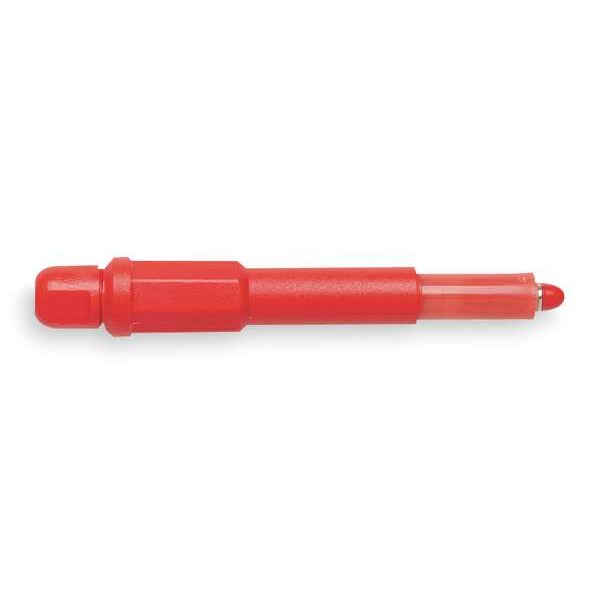

Pomona Electronics Banana Plug, 300VDC, 20A, 2-5/9 In. L, Red 122506A

Banana Plug, 300VDC, 20A, 2-5/9 In. L, Red (Discontinued)

  • Mfr # 122506A
  • Zoro # G0268107
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
122506A
Zoro #
G0268107
UPC #
095969335430
Country of Origin
United Kingdom

Dimensions

Length
2 1/2 in
Wire Size
18 to 22 AWG
Manufacturers Warranty Length
1 yr
Contact Diameter
3/8 in

Details

Item
Banana Plug
Color
Red
Application
Ideal for Creating A Special Patch Cord Length, Spring Loaded Retractable Sheath Offers Versatile Use In Sheathed and Non Sheathed Style of Banana Jacks
Includes
Banana Plug Body, Clamp Nut, Housing, Instructions, Sheath, Split Collet, Spring
Features
Spring Loaded Retractable Sheath Offers Versatile Use In Sheathed and Non Sheathed Style of Banana Jacks
Max. Amps
20
Insulating Material - Test Lead Connector
Acetal Polymer
Safety Rating
CAT II 300V
Contact Material
Beryllium Copper
Color - Test Lead Connector
Red
Standards
IEC, RoHS
Body Material - Test Lead Connector
Lucel Acetal Polymer
Hands Free Voltage
1000V AC/V DC
Contact Finish
Nickel Plated
Body Material
Lucel Acetal Polymer
Contact Finish - Test Lead Connector
Nickel Plated
Insulating Material
Acetal Polymer
Max. Amps - Test Lead Connector
20
Operating Temp.
14 to 176 Degrees F
Contact Material - Test Lead Connector
Beryllium Copper
Item - Test Lead Connector
Banana Plug
Hand Held Voltage
300V AC/V DC
Instrument Safety Rating
CAT II 300V, CAT III 150V
Spring Material
Beryllium copper
Maximum Current
20 A
Maximum Voltage
1,000 V
Insulation Material
Lucel
Maximum Operating Temperature
176 Degrees F
Minimum Operating Temperature
14 Degrees F

Description

Banana Plug, Contact Finish Nickel Plated, Contact Material Nickel Plated Brass and Beryllium Copper, Maximum Current 20 A, Color Red, Body Material Lucel Acetal Polymer, Maximum Voltage 1,000 V, Instrument Safety Rating CAT II 300V, CAT III 150V, Length 2 1/2 in, Application Ideal for Creating A Special Patch Cord Length, Spring Loaded Retractable Sheath Offers Versatile Use In Sheathed and Non Sheathed Style of Banana Jacks
