Deluxe Automotive DMM Test Lead Kit, CAT II 300V, CAT III 1000V, Banana Plug, 4 ft., Silicone

Mfr # 6530A
Zoro # G7499825

221.99

Free Shipping & Returns

Key Features

Instrument Safety Rating

CAT II 300V, CAT III 1000V

Plug and Connector Description

Banana Plug

Length

4 ft.

Color

Black, Red

Max Amps

10A

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 6530A
Zoro #: G7499825
UPC #: 095969322034
Country of Origin: China

Dimensions

Length: 4 ft.
Manufacturers Warranty Length: 90 day
Length - Test Lead: 4 ft
Lead Length: 48"
Meter Connection End Size: 0.16 in

Details

Item: Deluxe Automotive DMM Test Lead Kit
Instrument Safety Rating: CAT II 300V, CAT III 1000V
Plug and Connector Description: Banana Plug
Color: Black, Red
Max Amps: 10A

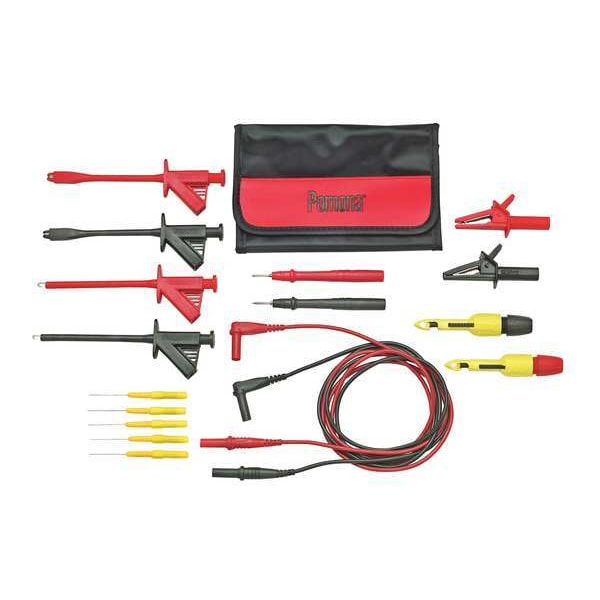

Includes: (1) Red Stainless-Steel Tip Test Probe Set; (1) Black Stainless-Steel Tip Test Probe Set; (1) Red Alligator Clip Set; (1) Black Alligator Clip Set; (1) Red Insulation Piercing Clip Set; (1) Black Insulation Piercing Clip Set; (5) Backprobe Pins; (1) Red Maxigrabber Hook Test Clip Set; (1) Black Maxigrabber Hook Test Clip Set; (1) Red Test Lead Set; (1) Black Test Lead Set
Features: Flexible Test leads Feature High Strand Count Silicone Wire For Extreme Flexibility and High Temperature Resistance, Wear Indication with Double Insulated Silicone Leads Shows White Inner Layer for Increased Safety, Banana Plugs are Molded Directly to the Wire for Superior Pull Strength
For Use With: Multimeters
Item - Test Lead Kit: Modular Test Lead Kit
Max. Amps - Test Lead Kit: 10
For Use With - Test Leads: Any Multimeter, Clamp Meter, or Test Instrument That Accepts a Standard Shrouded Banana Plug
Voltage Rating: 30VAC/60VDC
Max. Voltage - Test Lead Kit: 1,000
Max. Amps: 10 A
Safety Rating: CAT III 1000V, CAT II 300V
Includes - Test Lead Kit: Carrying Case, Modular Test Clips, Modular Test Leads, Modular Test probe Plunger Clips, Modular Test Probes, Slip-on Test Probe Tip Extender
Standards: CE
Meter Connection Type: Banana Plug
Insulation Material: Polypropylene
Maximum Current: 10 A
Test End Termination: Alligator Clip, Standard Probe
Number of Alligator Clips: 0
Test End Material: Nickel
Maximum Voltage: 1,000 V
Number of Modular Test Clips: 0
Number of Test Leads: 0
CAT Safety Rating: CAT II 300V, CAT III 1000V
Compatible Test Instrument: Multimeter, Clamp Meter

Description

Test Lead Kit, For Use With Any Multimeter, Clamp Meter, or Test Instrument that Accepts a Standard Shrouded Banana Plug, Includes Alligator Clips, Maxigrabber(R) Hook Test Clips, Maxigrabber(R) Jaw Test Clips, Nylon Pouch, Piercing Clips, Probe Extender, Probes, Test Leads, Length 4 ft, Maximum Voltage 1,000 V, Maximum Temperature Measurement Not Applicable, Minimum Temperature Measurement Not Applicable, Instrument Safety Rating CAT II 300V, CAT III 1000V
