  9. Jaw Test Probes, 6-1/2 In. L, 10A, PR
This item is Discontinued.

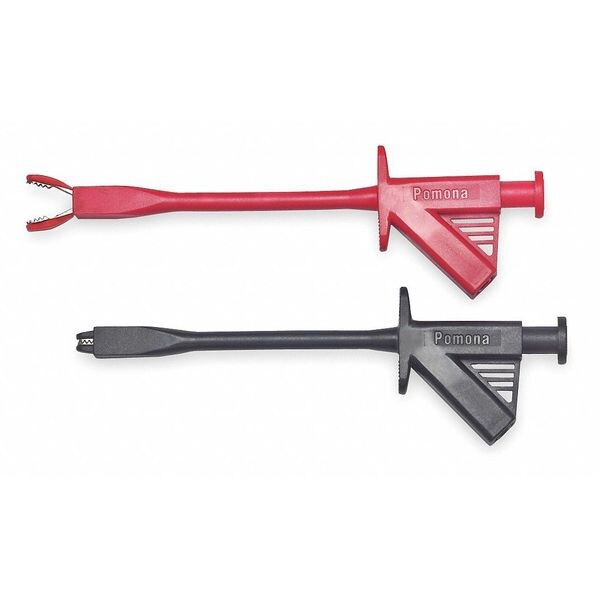

Pomona Electronics Jaw Test Probes, 6-1/2 In. L, 10A, PR 5912B

Jaw Test Probes, 6-1/2 In. L, 10A, PR (Discontinued)

  • Mfr # 5912B
  • Zoro # G2530647
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5912B
Zoro #
G2530647
UPC #
095969111430
Country of Origin
Unknown

Dimensions

Length
6-1/2"
Opening Size - Test Clip
0.50 in
Opening Size
1/2"
Manufacturers Warranty Length
1 yr.

Details

Item
Jaw Test Probes
Plug and Connector Description
Safety Sheathed Banana Jack
Color
Black, Red
For Use With
Standard Multimeter Test Leads with Sheathed Banana Plugs
Includes
Grabber with Grip Teeth, Sheathed 4mm Receptacle Accepts Shrouded Banana Plug
Features
(1) Pair, Sheathed Jacks, 1/2" Jaw Opening, Nickel Plated
Jaw Material
Nickel Plated Beryllium Copper
Color - Clip or Probe
Black/Red
Item - Test Clip and Probe
Test Probe Clip
Instrument Safety Rating
CAT III 1000V
Hand Held Voltage
1000V AC/DC
Jaw Material - Test Clip
Nickel Plated Beryllium Copper
For Use With - Test Clip and Probe
Multimeter Test Leads with 4 mm Sheathed Banana Plugs
Tip Material
Nickel Plated Beryllium Copper
Insulating Material
Polypropylene
Max. Voltage
1000VDC
Max. Voltage - Clip or Probe
1000V AC/DC
Hands Free Voltage
1000V AC/DC
Insulating Material - Clip or Probe
Polypropylene
Tip Material - Test Probe
Nickel Plated Beryllium Copper
Safety Rating
Cat III 1000V
Standards
IEC 1010, UL-3111
Max. Amps - Clip or Probe
10.0
Max. Amps
10

Description

Jaw Test Probes, For Use With Standard Multimeter Test Leads with Sheathed Banana Plugs, Color Black, Red, Hand Held Voltage 1000V AC/DC, Hands Free Voltage 1000V AC/DC, Instrument Safety Rating CAT III 1000V, Features (1) Pair, Sheathed Jacks, 1/2 in Jaw Opening, Nickel Plated, Length 6 1/2 in, Tip Material Nickel Plated Beryllium Copper, Opening Size 1/2 In., Includes Grabber with Grip Teeth, Sheathed 4mm Receptacle Accepts Shrouded Banana Plug, Jaw Material Nickel Plated Beryllium Copper
