Shop POMONA ELECTRONICS

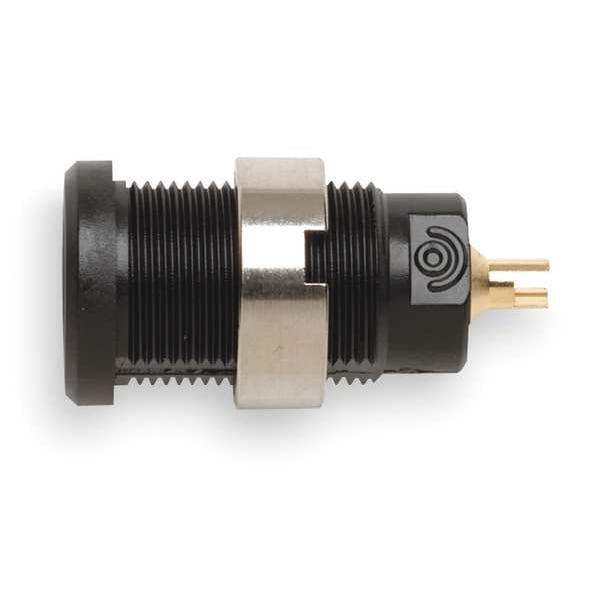

Sheathed Banana Jack, CAT III 1000V, Banana Jack, 1", Black

  • Mfr # 5931-0
  • Zoro # G0525542
product price:
$
58.25
/pk of 10, $5.83/ea

Key Features

Instrument Safety Rating
CAT III 1000V
Plug and Connector Description
Banana Jack
Length
1"
Color
Black
Max Amps
25 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
5931-0
Zoro #
G0525542
UPC #
095969335461
Country of Origin
France
Item
Sheathed Banana Jack
Instrument Safety Rating
CAT III 1000V
Plug and Connector Description
Banana Jack
Color
Black
Max Amps
25 A
Application
Electronics Design or Manufacturing
Includes
Locking Ring
Features
Banana Jack is Gold Plated for Superb Electrical Connection, Banana Jack Mates to Pomona S Models 5907A, 5908A and 5909A Flexible Sheathed Style of DMM Test Leads, Recommended Panel Thickness 0.28 in (7 mm), Ring Threads Onto the Insulated Body to Firmly Secure Jack to Panel
Hands Free Voltage
1,000V AC, 1,000V DC
Item - Test Lead Connector
Banana Jack
Operating Temp.
Up to 176 Degrees F
Body Material
Brass
Safety Rating
Cat III 1000V
Contact Material - Test Lead Connector
Brass
Contact Finish
Gold Plated
Insulating Material - Test Lead Connector
Nylon
Contact Material
Brass
Hand Held Voltage
1,000V AC, 1,000V DC
Standards
CE, IEC 61010-031, IEC 61010-1
Insulating Material
Nylon
Color - Test Lead Connector
Black
Max. Amps - Test Lead Connector
25 A
Contact Finish - Test Lead Connector
Gold Plated
Max. Amps
25 A
Body Material - Test Lead Connector
Nylon
Spring Material
Brass
Maximum Voltage
1,000 V
Maximum Operating Temperature
176 Degrees F
Meter Connection Type
Straight Shrouded Plug
Maximum Current
25 A
Insulation Material
Nylon
Body Finish
Gold Plated
CAT Safety Rating
CAT III 1000V
Wire Color
Black

Dimensions

Length
1"
Manufacturers Warranty Length
1 yr
Contact Diameter
3/16 in
Fits Chest Size
Banana Jack is Gold Plated for Superb Electrical Connection, Banana Jack Mates to Pomona S Models 5907A, 5908A and 5909A Flexible Sheathed Style of DMM Test Leads, Recommended Panel Thickness 0.28 in (7 mm), Ring Threads Onto the Insulated Body to Firmly Secure Jack to Panel

Description

Straight Shrouded Plug, Contact Finish Gold Plated, Contact Material Brass, Maximum Current 25 A, Color Black, Body Material Brass, Maximum Voltage 1,000 V, Instrument Safety Rating CAT III 1000V, Length 5/8 in, Application Electronics
