  9. 23 GA 1-3/8 in. Pin Nailer
Shop All Air Nailers & Staplers
Porter-Cable

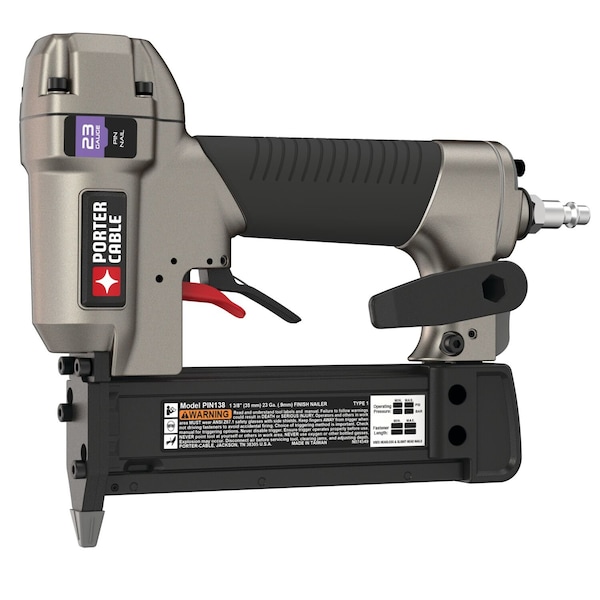

23 GA 1-3/8 in. Pin Nailer

product price: $142.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Collation Angle 0 Degrees
  • Collation Type Glue
  • Fastener Range 5/8 in to 1-3/8 in
  • Shank Dia. 0.63 to 0.67mm
  • Gauge 23
See all product information

Product Information

Dimensions

Shank Dia. 0.63 to 0.67mm
Height 7 1/2 in
Width 1 15/16 in
Length 9 1/2 in
For Nail Shank Diameter 0.023 in
Overall Height 7 1/2 in
Depth Control No
Overall Width 2 in
Min. Hose Size 1/4 in
For Nail Length Range 5/8 in to 1 3/8 in
Overall Length 8 1/8 in

Details

Item Nail Gun
Collation Angle 0 Degrees
Collation Type Glue
Fastener Range 5/8 in to 1-3/8 in
Gauge 23
Magazine Capacity 130
Tool Weight 2.2 lb
Includes 1/4 in Fitting, Carrying Case
Tip Nonmarring
Features Narrow Nose, Removable Non-Marring Nose Tip with on Tool Storage
Required Pressure 60 psi
Color Silver/Black
For Use With 23 ga Headless and Slight Head Pin Nails
Max. Pressure 100 psi
Style Straight
Air Inlet 1/4 in NPT
Firing Mode Bump
Housing Material Aluminum
Exhaust Rear
CFM per Shot 1.61
Handle Type Pistol Grip
Duty Rating General Duty
Exhaust Location Rear
Air Pressure 60 psi
Power Source Air Powered
Collation Style Strip
Built-In Light No
For Nail Head Style Pin
Nail Capacity 132
Min. Air Pressure 60 psi
Nail Gun Type Pin
Air Consumption 1.6 cfm
For Nail Gauge 23 ga
Standards ANSI
Max. Air Pressure 100 psi
Air Pressure Range 60 to 100 psi

Description

Nail Gun, Power Source Air Powered, Air Consumption 1.6 cfm, Air Inlet 1/4 in NPT, Air Pressure 60 psi, Air Pressure Range 60 to 100 psi, Max. Air Pressure 100 psi, Min. Air Pressure 60 psi, Min. Hose Size 1/4 in, Exhaust Location Rear, Tool Brand Porter Cable, Firing Mode Bump, Tip Nonmarring, Depth Control No, Collation Style Strip, Collation Type Glue, Collation Angle 0 Degrees , For Nail Gauge 23 ga, For Nail Head Style Pin, For Nail Length Range 5/8 in to 1 3/8 in
