This item is Discontinued.

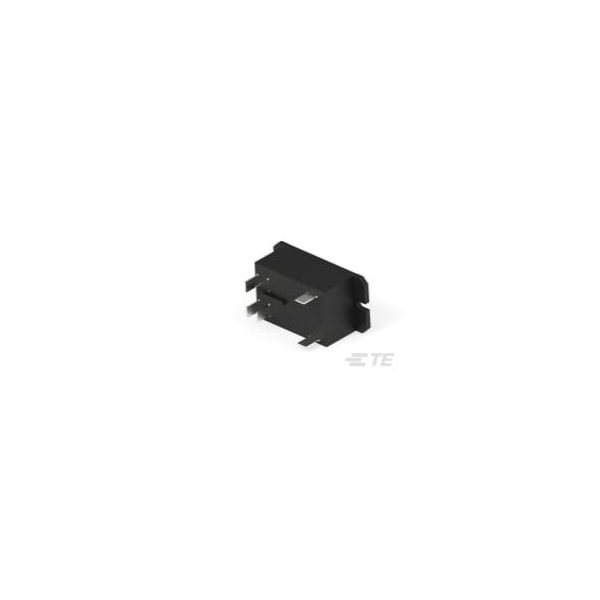

Potter-Brumfield Electromechanical Relay DPST-NO 30A 12VDC T92P7D22-12

Electromechanical Relay DPST-NO 30A 12VDC (Discontinued)

  • Mfr # T92P7D22-12
  • Zoro # G000969076
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
T92P7D22-12
Zoro #
G000969076
UPC #
-
Country of Origin
China

Dimensions

Length
52.1 mm [ 2.051 in ]
Width
34.5 mm [ 1.359 in ]
Height
26.4 mm [ 1.039 in ]

Details

Item
PCB Relay
Mounting Style
Flange Mount, Panel Mount
Electrical Connection
Quick Connect
Coil Voltage
12V DC
Contact Material
AgCdO
Insulation Special Features
6000V Initial Surge Withstand Voltage between Contacts and Coil
Coil Resistance (Ω)
86
Contact Voltage Rating (VAC)
277
Coil Special Features
UL Coil Insulation Class F
Contact Switching Load (Min)
500mA @ 12V
Contact Number of Poles
2
Coil Magnetic System
Monostable, DC
Contact Arrangement
2 Form A (NO)
Coil Power Rating (DC) (mW)
1700
Insulation Initial Dielectric Between Contacts and Coil (Vrms)
4000
Contact Limiting Continuous Current (A)
30
Environmental Ambient Temperature Class
50 to 70°C
Contact Switching Voltage (Max) (VAC)
600
Insulation Clearance Class
5 to 8mm
Contact Current Class
20 to 30 A, Greater Than 16A
Insulation Initial Dielectric Between Coil/Contact Class
3500 to 4000 V
Environmental Category of Protection
RTI
Coil Power Rating Class
>1.5W
Relay Type
T92 Series 2-Pole 30A PCB
Insulation Initial Resistance (MΩ)
1000000
Insulation Clearance Between Contact and Coil
8 mm [ .315 in ]
Insulation Creepage Between Contact and Coil
9.5 mm [ .374 in ]
Contact Current Rating (A)
30
Contact Limiting Making Current (A)
30
Insulation Creepage Class
>8mm
Contact Limiting Short-Time Current (A)
30
Environmental Ambient Temperature (Max)
65 °C [ 149 °F ]
Insulation Initial Dielectric Between Open Contacts (Vrms)
1500
Insulation Initial Dielectric Between Adjacent Contacts (Vrms)
2000
Contact Limiting Breaking Current (A)
30
