This item is Discontinued.

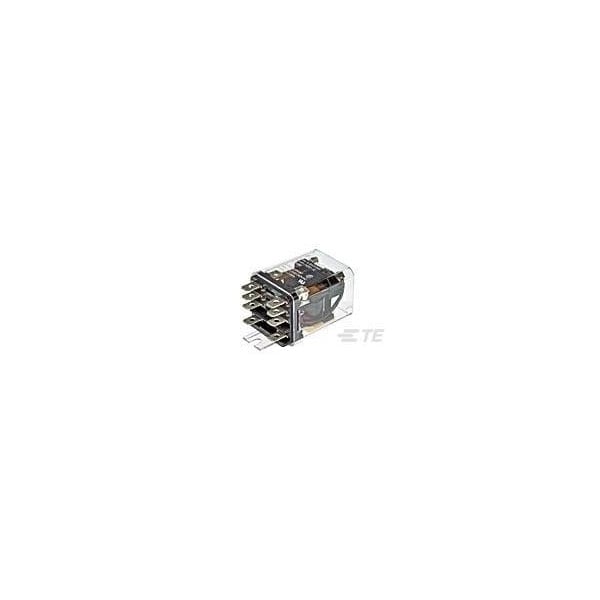

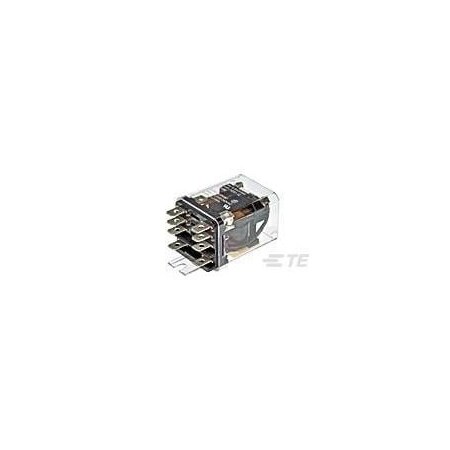

KUHP-11A51-24=KU- (Discontinued)
-
Mfr #
KUHP-11A51-24
-
Zoro #
G600947429
Shop for similar items
Specifications
Country of Origin
United States
Width
38.9 mm [ 1.531 in ]
Height
35.7 mm [ 1.405 in ]
Item
General Purpose Relay
Mounting Style
Bracket, Panel Mount
Electrical Connection
Quick Connect, Solder
Insulation Initial Resistance (MΩ)
100000
Coil Special Features
UL Coil Insulation Class B
Contact Switching Load (Min)
300mA @ 12V
Contact Current Rating (A)
20
Coil Power Rating (AC) (VA)
3
Environmental Category of Protection
RTI
Contact Arrangement
2 Form C (CO)
Contact Limiting Breaking Current (A)
20
Environmental Ambient Temperature (Max)
45 °C [ 113 °F ]
Contact Limiting Continuous Current (A)
20
Contact Limiting Short-Time Current (A)
20
Contact Number of Poles
2
Coil Magnetic System
Monostable, AC
Insulation Initial Dielectric Between Contacts and Coil (Vrms)
3750
Environmental Ambient Temperature Class
0 to 50°C
Relay Type
KUHP Series Panel Relay
Contact Limiting Making Current (A)
20
Insulation Initial Dielectric Between Adjacent Contacts (Vrms)
2000
Insulation Initial Dielectric Between Coil/Contact Class
3500 to 4000 V
Insulation Initial Dielectric Between Open Contacts (Vrms)
1200
Contact Current Class
10 to 20 A, Greater Than 16A
Coil Power Rating Class
2 to 3 VA
Contact Voltage Rating (VAC)
240
