This item is Discontinued.

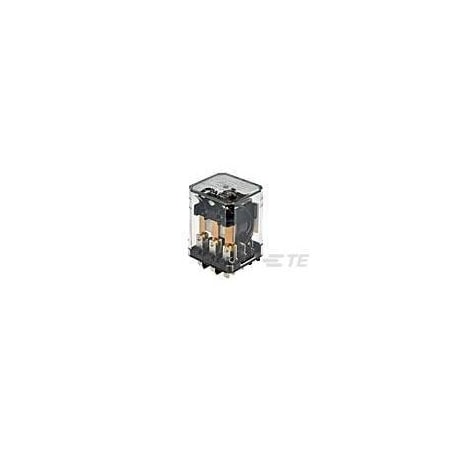

Potter-Brumfield KUMP-14A18-120=KU KUMP-14A18-120

KUMP-14A18-120=KU (Discontinued)

  • Mfr # KUMP-14A18-120
  • Zoro # G600947764
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
KUMP-14A18-120
Zoro #
G600947764
UPC #
-
Country of Origin
China

Dimensions

Length
38.9 mm [ 1.55 in ]
Width
35.7 mm [ 1.405 in ]
Height
50 mm [ 1.97 in ]

Details

Item
Plug-In Relay
Mounting Style
Socket
Electrical Connection
Quick Connect, Solder
Coil Voltage
120V AC
Contact Material
AgCdO
Contact Limiting Short-Time Current (A)
15
Contact Voltage Rating (VAC)
277
Coil Power Rating (AC) (VA)
3
Contact Limiting Continuous Current (A)
15
Relay Type
KUMP Series Panel Plug-In Relay
Contact Limiting Making Current (A)
15
Contact Arrangement
3 Form C (CO)
Insulation Initial Dielectric Between Contacts and Coil (Vrms)
2200
Insulation Initial Dielectric Between Adjacent Contacts (Vrms)
2200
Coil Magnetic System
Monostable, AC
Coil Power Rating Class
2 to 3 VA
Contact Number of Poles
3
Environmental Category of Protection
RTI
Insulation Initial Dielectric Between Coil/Contact Class
1500 V to 2500 VA
Coil Resistance (Ω)
1700
Environmental Ambient Temperature (Max)
45 °C [ 113 °F ]
Contact Switching Load (Min)
300mA @ 12V
Contact Current Class
10 to 20 A, Less Than 16A
Contact Limiting Breaking Current (A)
15
Insulation Initial Resistance (MΩ)
100000
Coil Special Features
UL Coil Insulation Class B
Contact Current Rating (A)
15
Insulation Initial Dielectric Between Open Contacts (Vrms)
1200
Environmental Ambient Temperature Class
0 to 50°C
