  13. PCB, PCB Relay, 30 A, PCB
This item is Discontinued.

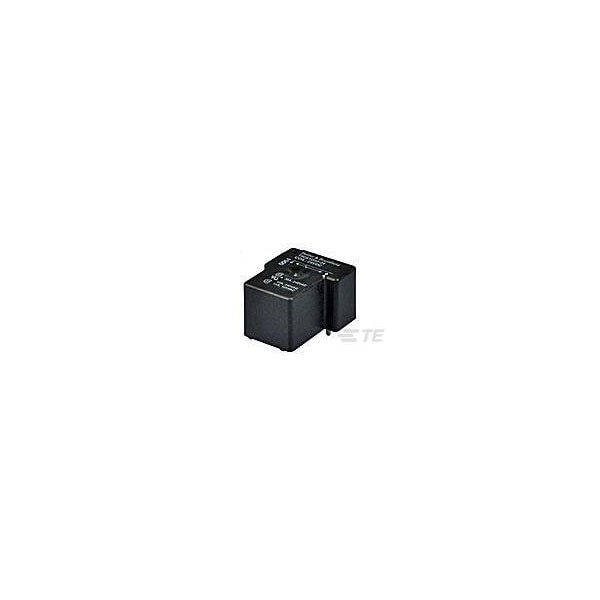

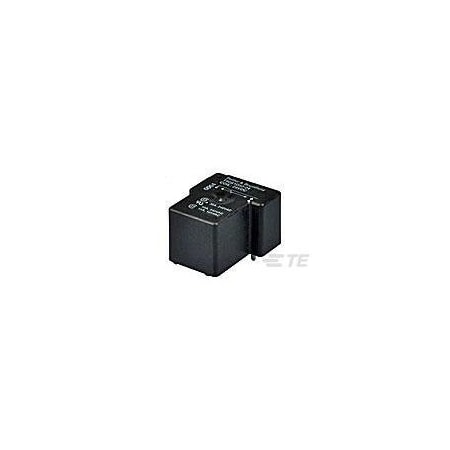

Potter-Brumfield PCB, PCB Relay, 30 A, PCB T90S1D12-6

PCB, PCB Relay, 30 A, PCB (Discontinued)

  • Mfr # T90S1D12-6
  • Zoro # G000969762
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
T90S1D12-6
Zoro #
G000969762
UPC #
-
Country of Origin
Mexico

Dimensions

Length
32.3 mm [ 1.272 in ]
Width
27.4 mm [ 1.079 in ]
Height
20.4 mm [ .803 in ]

Details

Item
PCB Relay
Mounting Style
PCB
Electrical Connection
PCB
Coil Voltage
6V DC
Current Rating
30 A
Contact Material
AgCdO
Contact Arrangement
1 Form A (NO)
Contact Switching Load (Min)
1000mA @ 5V
Contact Limiting Short-Time Current (A)
30
Contact Limiting Continuous Current (A)
30
Contact Voltage Rating (VAC)
277
Insulation Initial Dielectric Between Contacts and Coil (Vrms)
1500
Coil Magnetic System
Monostable, DC
Contact Limiting Making Current (A)
30
Insulation Creepage Between Contact and Coil
3.17 mm [ .1248 in ]
Insulation Clearance Between Contact and Coil
3.17 mm [ .1248 in ]
Insulation Clearance Class
2.5 to 4mm
Insulation Initial Resistance (MΩ)
1000
Environmental Ambient Temperature Class
70 to 85°C
Contact Current Class
20 to 30 A
Contact Number of Poles
1
Coil Resistance (Ω)
40
Coil Special Features
UL Coil Insulation Class F
Environmental Ambient Temperature (Max)
85 °C [ 185 °F ]
Coil Power Rating (DC) (mW)
1000
Contact Switching Voltage (Max) (VAC)
277
Environmental Category of Protection
RTIII
Contact Current Rating (A)
30
Insulation Initial Dielectric Between Open Contacts (Vrms)
1500
Insulation Initial Dielectric Between Coil/Contact Class
1000 V to 1500 VA
Contact Limiting Breaking Current (A)
30
Insulation Creepage Class
3 to 5.5mm
Coil Power Rating Class
800 to 1000 mW
