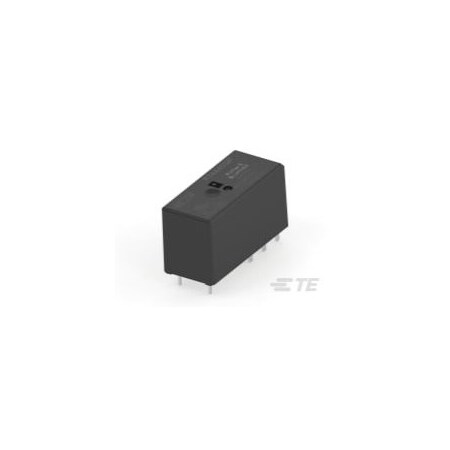

PCB, Socket, PCB Relay, 16 A, 1, PCB, Plug-in (Discontinued)
- Mfr # RT314005F
- Zoro # G600969018
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
RT314005F
Zoro #
G600969018
UPC #
-
Country of Origin
Mexico
Details
Item
PCB Relay
Mounting Style
PCB, Socket
Electrical Connection
PCB, Plug-in
Number of Pins
1
Coil Voltage
5V DC
Current Rating
16 A
Power Consumption - Relay
403 mW
Features
UL Coil Insulation Class F
Contact Material
AgNi90/10
Number of Poles
1
Contact Limiting Continuous Current
16A
Operating Temp. Range
70 to 85°C
Insulation Creepage
10 mm [ .394 in ]
Dielectric Voltage
5000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Coil Type
Monostable, DC
Insulation Clearance
10 mm [ .394 in ]
Contact Voltage Rating
250V AC
Switching Voltage
400V AC
Coil Resistance
62 Ω
Contact Limiting Breaking Current
16A
Contact Limiting Short-Time Current
16A
Contact Rating
16A
Contact Limiting Making Current
30A
Protection Category
RTII
Description
