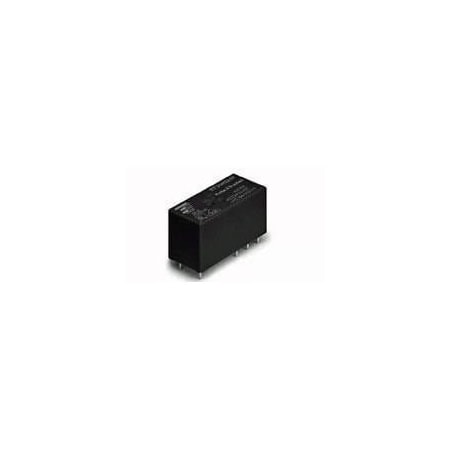

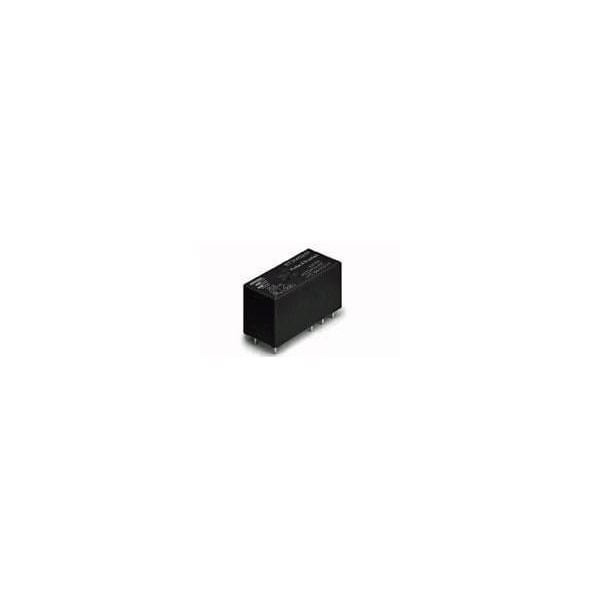

PCB, Socket, PCB Relay, 16 A, PCB, Plug-in (Discontinued)
- Mfr # RT334024F
- Zoro # G000967874
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
RT334024F
Zoro #
G000967874
UPC #
-
Country of Origin
Austria
Details
Item
PCB Relay
Mounting Style
PCB, Socket
Electrical Connection
PCB, Plug-in
Coil Voltage
24V DC
Current Rating
16 A
Power Consumption - Relay
400 mW
Features
UL Coil Insulation Class F
Contact Material
AgNi90/10
Number of Poles
1
Coil Resistance
1440 Ω
Contact Limiting Breaking Current
16A
Contact Rating
16A
Contact Limiting Continuous Current
16A
Insulation Clearance
10 mm [ .394 in ]
Switching Voltage
400V AC
Dielectric Voltage
5000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Coil Type
Monostable, DC
Protection Category
RTII
Contact Limiting Making Current
30A
Contact Limiting Short-Time Current
16A
Contact Voltage Rating
250V AC
Operating Temp. Range
70 to 85°C
Insulation Creepage
10 mm [ .394 in ]
