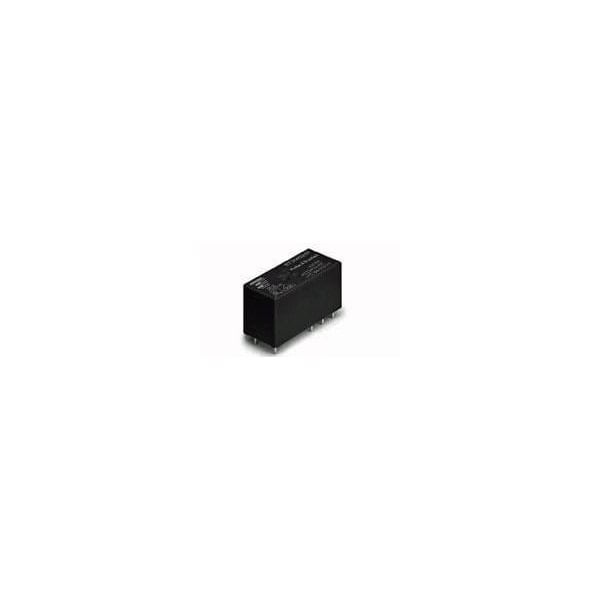

PCB, Socket, PCB Relay, 8 A, 2, PCB, Plug-in (Discontinued)
- Mfr # RTE24005F
- Zoro # G100967842
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
RTE24005F
Zoro #
G100967842
UPC #
-
Country of Origin
China
Details
Item
PCB Relay
Mounting Style
PCB, Socket
Electrical Connection
PCB, Plug-in
Number of Pins
2
Coil Voltage
5V DC
Current Rating
8 A
Contact Material
AgNi90/10
Features
UL Coil Insulation Class F
Number of Poles
2
Power Consumption - Relay
403 mW
Insulation Creepage
10 mm [ .394 in ]
Contact Limiting Breaking Current
8A
Contact Rating
8A
Coil Type
Monostable, DC
Contact Voltage Rating
250V AC
Protection Category
RTIII
Dielectric Voltage
2500 Vrms Adjacent Contacts; 5000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Contact Limiting Making Current
15A
Switching Voltage
400V AC
Insulation Clearance
10 mm [ .394 in ]
Contact Limiting Continuous Current
8A
Contact Limiting Short-Time Current
8A
Coil Resistance
62 Ω
Operating Temp. Range
70 to 85°C
