Product Information
MFR #
RTB14012F
Zoro #
G900968599
UPC #
-
Country of Origin
China
Details
Item

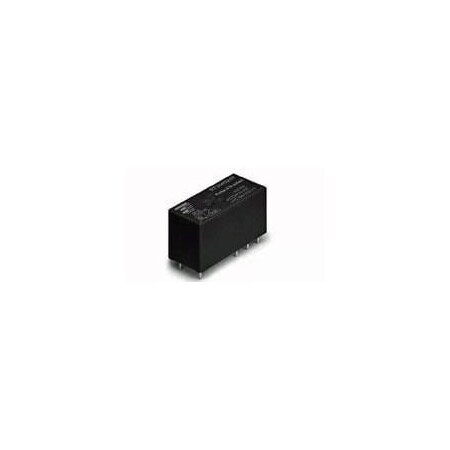

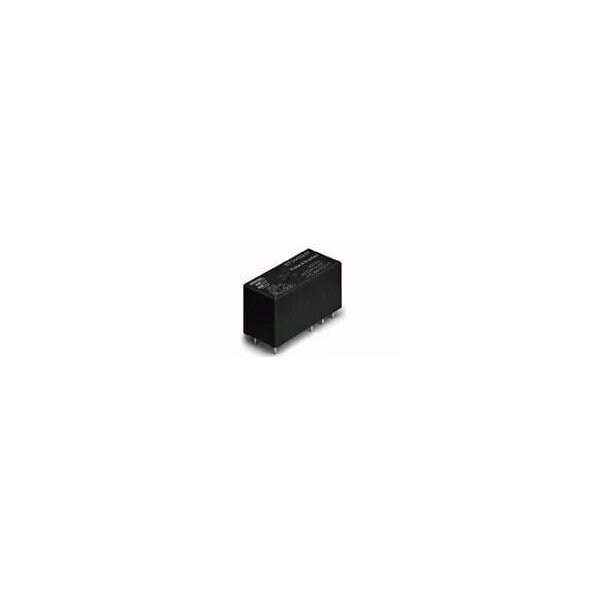

PCB Relay
Mounting Style
Printed Circuit Board, Socket
Electrical Connection
PCB-THT, Plug-In
Coil Voltage
12V DC
Contact Form
1 Form C (CO)
Power Consumption - Relay
400 mW
Features
UL Coil Insulation Class F
Contact Material
AgNi90/10
Number of Poles
1
Coil Type
Monostable, DC
Insulation Creepage
10 mm [ .394 in ]
Switching Voltage
400V AC
Contact Limiting Continuous Current
12A
Protection Category
RTIII
Contact Limiting Breaking Current
12A
Contact Limiting Short-Time Current
12A
Contact Voltage Rating
250V AC
Dielectric Voltage
5000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Insulation Clearance
10 mm [ .394 in ]
Coil Resistance
360 Ω
Contact Limiting Making Current
25A
Contact Rating
12A
Operating Temp. Range
70 to 85°C
