  13. PCB, PCB Relay, 20 A, Quick Connect
This item is Discontinued.

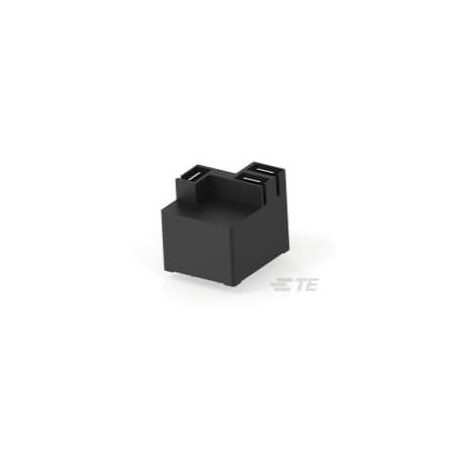

Potter-Brumfield PCB, PCB Relay, 20 A, Quick Connect T9AS5D22-12

PCB, PCB Relay, 20 A, Quick Connect (Discontinued)

  • Mfr # T9AS5D22-12
  • Zoro # G200969463
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
T9AS5D22-12
Zoro #
G200969463
UPC #
-
Country of Origin
China

Dimensions

Length
32.5 mm [ 1.281 in ]
Width
27.4 mm [ 1.079 in ]
Height
27.9 mm [ 1.098 in ]

Details

Item
PCB Relay
Mounting Style
PCB
Electrical Connection
Quick Connect
Coil Voltage
12V DC
Current Rating
20 A
Contact Material
AgCdO
Insulation Creepage Between Contact and Coil
6.36 mm [ .25 in ]
Coil Special Features
UL Coil Insulation Class F
Contact Limiting Making Current (A)
20
Coil Magnetic System
Monostable, DC
Coil Power Rating (DC) (mW)
1000
Contact Arrangement
1 Form C (CO)
Insulation Clearance Class
2.5 to 4mm
Environmental Ambient Temperature (Max)
85 °C [ 185 °F ]
Insulation Clearance Between Contact and Coil
3.18 mm [ .125 in ]
Insulation Initial Dielectric Between Coil/Contact Class
1500 V to 2500 VA
Coil Power Rating Class
800 to 1000 mW
Insulation Initial Dielectric Between Contacts and Coil (Vrms)
2500
Insulation Special Features
6000V Initial Surge Withstand Voltage between Contacts & Coil
Contact Limiting Short-Time Current (A)
20
Contact Limiting Continuous Current (A)
20
Insulation Creepage Class
5.5 to 8mm
Contact Current Rating (A)
20
Contact Voltage Rating (VAC)
277
Contact Switching Load (Min)
1000mA @ 5V
Insulation Initial Resistance (MΩ)
1000
Environmental Ambient Temperature Class
70 to 85°C
Coil Resistance (Ω)
144
Contact Switching Voltage (Max) (VAC)
277
Contact Current Class
10 to 20 A, Greater Than 16A
Contact Number of Poles
1
Contact Limiting Breaking Current (A)
20
Environmental Category of Protection
RTIII
Insulation Initial Dielectric Between Open Contacts (Vrms)
1500
