  11. Butt Splice Wire Connector, 14 AWG Max, Blue, Vinyl Insulation, 600 V, 100 PK
This item is Discontinued.

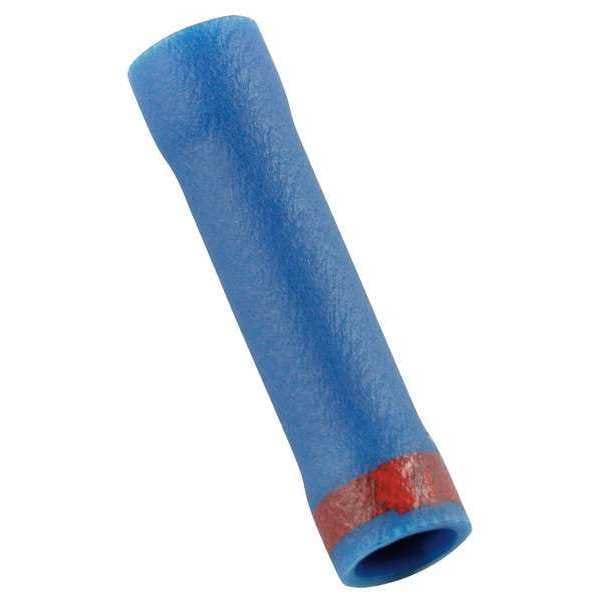

Power First Butt Splice Wire Connector, 14 AWG Max, Blue, Vinyl Insulation, 600 V, 100 PK 5UGU8

Butt Splice Wire Connector, 14 AWG Max, Blue, Vinyl Insulation, 600 V, 100 PK (Discontinued)

  • Mfr # 5UGU8
  • Zoro # G2657961
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
5UGU8
Zoro #
G2657961
UPC #
190735599662
Country of Origin
Taiwan, Province of China

Dimensions

Maximum Wire Size
14 AWG
Minimum Wire Size
22 AWG
Overall Length
0.97 in
Barrel Inside Dia.
0.067 in 0.091 in
For Maximum Wire Insulation Diameter
0.064 in
Barrel Outside Diameter
0.177 in
Strip Length
1/4 in
Barrel Inside Diameter
0.091 in
For Minimum Wire Size - Solid
22 AWG
For Maximum Wire Size - Solid
14 AWG

Details

Item
Butt Splice Wire Connector
Type
Butt Splice
Color
Blue
Insulation Material
Vinyl
Maximum Voltage
600 V
Maximum Operating Temperature
167 Degrees F
UL 94 Flammability Rating
V-0
RoHS Compliant
Yes
Standards
UL/cUL Listed
Material
Copper
Maximum Conductors
2
Number of Splices
1
Seam Style
Seamless
Compatible Installation Tool Model Number
24C968
Compatible with Product Type
Insulated Stranded Copper Cable
Special Features
Changing Down
Termination Style
Crimp
For Wire Type
Stranded
Finish
Tin Plated

Description

Splice Connector, Connection Type Crimp, Insulation Material Vinyl, Insulation Color Blue, Maximum Operating Temperature 167 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 22 AWG, Maximum Wire Size 14 AWG, Standards UL/cUL Listed, Termination Style Crimp, Contact Finish Tin, Contact Material Copper, UL 94 Flammability Rating V-0, Overall Length 0.97 in, RoHS Compliant Yes, Seam Style Seamless, Barrel Inside Diameter 0.091 in, Barrel Outside Diameter 0.177 in, Body Finish Tin Plated
