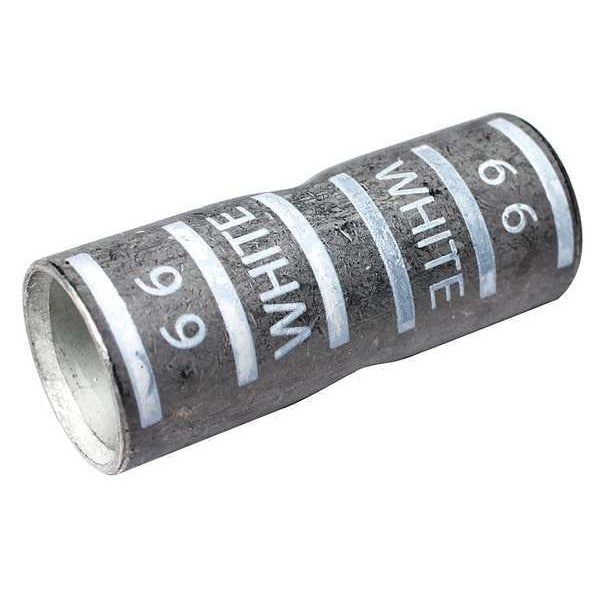

Splice Wire Connector, 300 kcmil Max, White, None Insulation, 600 V
Mfr # 22EZ25
Zoro # G2989239
product price: $11.09
/eaSold in multiples of 3 for $33.27
Key Features
Type
Crimp
Color
White
Minimum Wire Size
300 kcmil
Insulation Material
None
Maximum Voltage
600 V
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
22EZ25
Zoro #
G2989239
UPC #
190735587867
Country of Origin
China
Dimensions
Maximum Wire Size
300 kcmil
Minimum Wire Size
300 kcmil
Length
2.15 in
Outside Dia.
0.85 in
Overall Length
2.15 in
Barrel Outside Diameter
0.85 in
Barrel Inside Diameter
0.7 in
Strip Length
1 3/32 in
Barrel Size
Short
Maximum Wire Insulation Diameter
0.85 in
For Minimum Wire Size - Solid
300 kcmil
For Maximum Wire Size - Solid
300 kcmil
For Maximum Wire Size - Stranded
300 kcmil
For Minimum Wire Size - Stranded
300 kcmil
Description
Open Barrel Splice, Barrel Finish Tin Plated, Barrel Size Short, Color Code White, Die Code 66, For Conductor Material Copper, For Wire Type Stranded, Material Copper, Maximum Voltage 35 kV, Minimum Wire Size Not Applicable, Maximum Wire Size 300 kcmil, Number of Crimps 2, Overall Length 2.15 in, Maximum Conductors 1, Maximum Operating Temperature 257 Degrees F, RoHS Compliant Yes, Seam Style Seamless, Standards ANSI, UL 486A-486B, Barrel Inside Diameter 0.7 in, Barrel Outside Diameter 0.85 in
