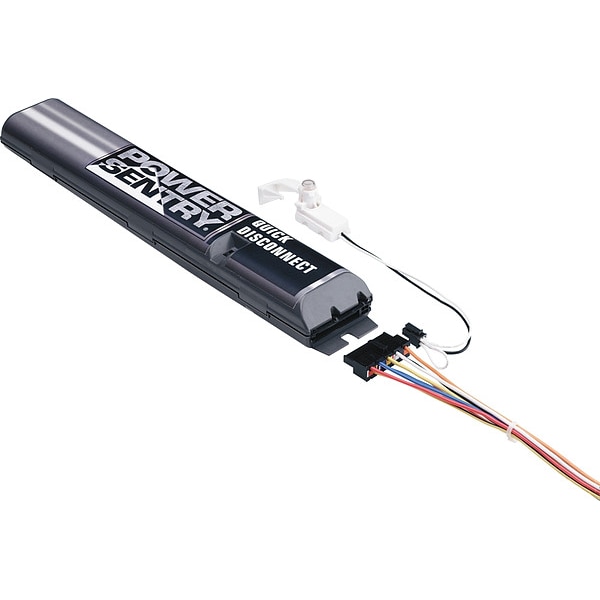

Power Sentry 80 W, 1100 to 1400 lm Linear Fluorescent Battery Pack PS1400QD MVOLT M8 - main

80 W, 1100 to 1400 lm Linear Fluorescent Battery Pack

  • Mfr # PS1400QD MVOLT M8

  • Zoro # G1633432

product price: $154.99
/ea
Free Shipping & Returns

Key Features

Item - Emergency Lighting and Exit Signs
Linear Fluorescent Battery Pack
Lamp Watts - Emergency Lighting and Exit Signs
80
Lamp Type - Fluorescent Lighting Battery Backup Systems
Biax, T5, T5HO, T8, T8HO, T12
Initial Lumens - Emergency Lighting and Exit Signs
1100 to 1400
Housing Material
Thermoplastic/Metal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PS1400QD MVOLT M8
Zoro #
G1633432
UPC #
784231103593
Country of Origin
China

Dimensions

Length - Emergency Lighting and Exit Signs
13-5/16"
Width
2 1/4 in
Height
1 1/4 in
Length
13 3/8 in
Lamp Length Supported
2 ft to 8 ft
Bulb Length Supported - Maximum
2 ft
Bulb Length Supported - Minimum
8 ft

Details

Item - Emergency Lighting and Exit Signs
Linear Fluorescent Battery Pack
Lamp Watts - Emergency Lighting and Exit Signs
80
Lamp Type - Fluorescent Lighting Battery Backup Systems
Biax, T5, T5HO, T8, T8HO, T12
Initial Lumens - Emergency Lighting and Exit Signs
1100 to 1400
Housing Material
Thermoplastic/Metal
Voltage - Emergency Lighting and Exit Signs
120/277
Number of Lamps Supported
1 or 2
Input Voltage
120 to 277V AC
Initial Lumens
800 to 1500 lm
Lamp Watts
80
Battery Type
Nickel Cadmium
Lamp Type
T5, T8, T12, HO, Biax
Standards
Meets UL 924, NEC and OSHA Illumination, NFPA 101, UL Listed
Item
Emergency Fluorescent Ballast
Emergency Illumination Time
90 min
Emergency Illumination Time - Emergency Lighting and Exit Signs
90 min.
Includes
Pilot Light/Test Switch Assembly, Quick-Disconnect Connector
Number of Bulbs Supported
1, 2
Brand and Series
Power Sentry
For Use With
Fluorescent Emergency Lighting
Meets Class 2 Electrical Wiring
No
Frequency
50/60 Hz
Ballast Type
Electronic
Profile
Low Profile
CA Title 20 Compliant
No
Ballast Bulb Type
T5, T5HO, T8, T8HO
Temperature Range
32 Degrees to 122 Degrees F
Wiring Connection
Wiring Attached
Recharge Time
24 hr
Bulb Watts
13 to 86W
Operating Amps @ 120V
0.27 A
Max. Bulb Watts
86 W
Bulb Wattage - Minimum
13 W
Initial Light Output - Minimum
800 lm
Initial Light Output - Maximum
1,500 lm
Compatible Product Type
122 Degrees F
Operating Temperature - Minimum
32 Degrees F

Description

Power Sentry, Electronic, Emergency Fluorescent Ballast, Input Voltage 120 to 277V AC, Number of Bulbs Supported 1, 2, Max. Bulb Watts 86 W, T5, T5HO, T8, T8HO Ballast Bulb Type, Initial Lumens 800 to 1500 lm, Thermoplastic/Metal Housing Material, 13 3/8 in Length, 2 1/4 in Width, 1 1/4 in Height, Low Profile, 90 min Emergency Illumination Time, 24 hr Recharge Time

Restrictions

Hazardous material
This item has been restricted from sale in the following states: CA
