  11. GearbeltPulley, XL, 22 Grooves

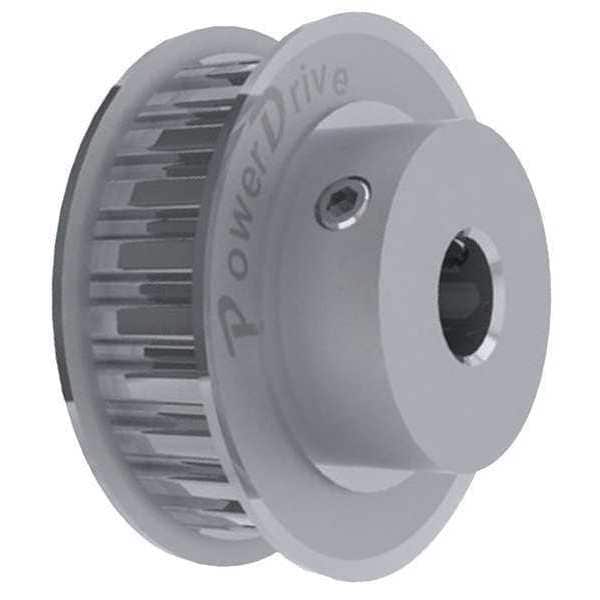

Powerdrive GearbeltPulley, XL, 22 Grooves 22XLB037-6FA - main

GearbeltPulley, XL, 22 Grooves

  • Mfr # 22XLB037-6FA

  • Zoro # G0857351

product price: $17.89
/ea

Key Features

Gearbelt Series - Timing Belts
XL
Number of Grooves - Timing Belt Pulleys
22
Bore Dia. - Timing Belt Pulleys
1/4 in
Pitch Dia. - Timing Belt Pulleys
1.401 in
Outside Dia. - Timing Belt Pulleys
1.318 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
22XLB037-6FA
Zoro #
G0857351
UPC #
637363002541
Country of Origin
India

Dimensions

Bore Dia. - Timing Belt Pulleys
1/4 in
Pitch Dia. - Timing Belt Pulleys
1.401 in
Outside Dia. - Timing Belt Pulleys
1.318 in
Pitch Dia. (In.)
1.401
Width (In.)
9/16
Width - Timing Belt Pulleys
9/16 in
Flange Dia.
1 5/8 in
Bore Dia. (mm)
6.35
Pitch Dia. (mm)
35.5854
Flange Dia. (mm)
41.275
Dimension L (In.)
29/32 in
Width (mm)
14.2875
Dimension F (In.)
9/16 in
Dimension P (In.)
11/32 in
Flange Dia. (In.)
1 5/8
Outside Dia. (In.)
1.318
For Timing Belt Width
1/4 in, 3/8 in
Outside Dia. (mm)
31.8262
Dimension H (In.)
1 in
Max. Bore Dia. - Timing Belt Pulleys
5/8 in
Bore Dia. (In.)
1/4
Hub Diameter
1 in
For Belt Width
3/8 in
Pitch Diameter
1.401 in
Face Diameter
1 in
Face Width
0.563 in
For Belt Trade Size
XL
Bore Diameter
1/4 in
Outside Diameter
1.625 in
Overall Width
7/8 in
Length through Bore
7/8 in
Maximum Bore Diameter
5/8 in

Details

Gearbelt Series - Timing Belts
XL
Number of Grooves - Timing Belt Pulleys
22
Pitch - Timing Belt Pulleys
1/5 in
Max. Bore (In.)
5/8
Material
Aluminum
Application
Light Duty, Up to 1/4 HP
Bore Type
Plain
Pitch (mm)
5.08
Keyway
No
Setscrew
Yes
For Use With
XL Timing Belt
Bore Type - Timing Belt Pulleys
Plain
Max. Bore (mm)
15.875
Flanged
Yes
Item
Gearbelt Pulley
Item - Timing Belt Pulleys
Industrial Timing Belt Pulley
Material - Timing Belt Pulleys
Aluminum
Construction
Solid
Includes
Set Screws
Type
Synchronous Drive XL
Weight
0.1 lb
Number of Teeth
22
Tooth Shape
Trapezoidal
For Maximum Horsepower
1/4 hp
Hub Projection
5/16 in
Hub Type
One Side
Set Screw Location
90 Degrees Apart
Pulley Construction
Plain
Finish
Aluminum Clear Anodized
Pitch
0.2 in
For Belt Series
XL
Number of Set Screws
2

Description

Gearbelt Pulley, Bore Diameter 1/4 in, For Belt Series XL, For Belt Width 3/8 in, For Use With XL Timing Belt, Material Aluminum, Maximum Bore Diameter 5/8 in, Number of Teeth 22, Outside Diameter 1.625 in, Pitch 0.2 in, Pitch Diameter 1.401 in, Bore Type Plain, Face Diameter 1 in, Face Width 0.563 in, Finish Aluminum Clear Anodized, For Belt Trade Size XL, For Maximum Horsepower 1/4 hp, Hub Diameter 1 in, Hub Projection 5/16 in, Hub Type One Side, Includes Set Screws, Keyway No
