Product Information
MFR #
48XLB037-6A
Zoro #
G2266485
UPC #
637363041694
Country of Origin
India
Dimensions
Bore Dia. - Timing Belt Pulleys
5/16 in
Pitch Dia. - Timing Belt Pulleys
3.056 in
Outside Dia. - Timing Belt Pulleys
3.036 in
Width (mm)
14.2875
Pitch Dia. (In.)
3.056
Width - Timing Belt Pulleys
9/16 in
Max. Bore Dia. - Timing Belt Pulleys
1 in
Outside Dia. (mm)
77.1144
Dimension F (In.)
9/16 in
Bore Dia. (mm)
7.9375
Dimension H (In.)
1 1/2 in
Dimension L (In.)
1 in
Outside Dia. (In.)
3.036
For Timing Belt Width
1/4 in, 3/8 in
Dimension P (In.)
7/16 in
Width (In.)
9/16
Bore Dia. (In.)
5/16
Pitch Dia. (mm)
77.6224
Length through Bore
1 in
For Belt Trade Size
XL
Overall Width
1 in
Pitch Diameter
3.056 in
Face Width
0.563 in
Face Diameter
1 1/2 in
Outside Diameter
3.036 in
Bore Diameter
5/16 in
Maximum Bore Diameter
1 in
For Belt Width
3/8 in
Hub Diameter
1 1/2 in
Description

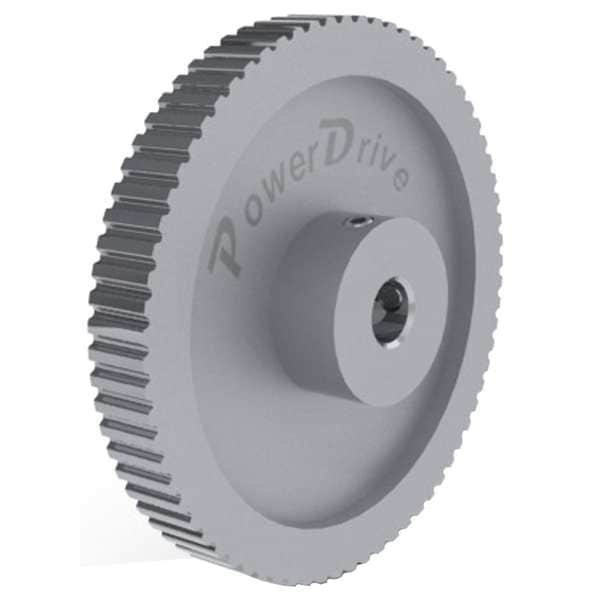

Gearbelt Pulley, Bore Diameter 5/16 in, For Belt Series XL, For Belt Width 3/8 in, For Use With Timing Belt, Material Aluminum, Maximum Bore Diameter 1 in, Number of Teeth 48, Outside Diameter 3.036 in, Pitch 0.2 in, Pitch Diameter 3.056 in, Bore Type Plain, Face Diameter 1 1/2 in, Face Width 0.563 in, Finish Aluminum Clear Anodized, For Belt Trade Size XL, For Maximum Horsepower 1/4 hp, Hub Diameter 1 1/2 in, Hub Projection 7/16 in, Includes Set Screws, Keyway No, Keyway Depth Not Applicable
