  11. Planer, 5 HP, 14 A

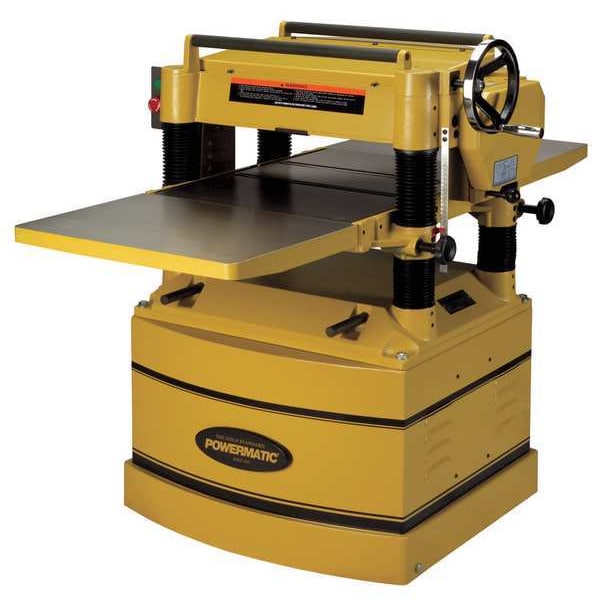

Powermatic Planer, 5 HP, 14 A 1791316 - main

Planer, 5 HP, 14 A

  • Mfr # 1791316

  • Zoro # G9878906

product price: $8,122.99
/ea
Item requires special delivery charges. A $340.00 per item surcharge will be applied.

Key Features

Features
Helical Cutter Head with 100 Knife inserts Provides Smoother, Quieter Cutting and Finer Finish Than Conventional Systems, 5HP Motor and 20 in Planning Capacity for Heavy Duty Work, Fully Enclosed Base Cabinet with integrated Casters for Shop Mobility, Cast Iron Table with Extensions Creates A Big 55 1/2 in x 20 in Working Area, Four Feed Speeds 24 and 31 FPM, 16 and 20 FPM with Gear Change Provide Versatility, Feed Rollers and Cutter Head Supported By Full Cast Iron Head Assembly for Rigidity,3 Phase Motor
Cutting Width (In.)
20 in
No Load RPM
5,000 RPM
Corded/Cordless
Corded
Cuts per Minute
20,000
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1791316
Zoro #
G9878906
UPC #
662755915437
Country of Origin
Taiwan, Province of China

Dimensions

Cutting Width (In.)
20 in
Overall Height (In.)
41 3/8 in
Depth of Cut (In.)
3/32 in
Overall Width (In.)
36 5/8 in
Overall Depth (In.)
26 in
Cutting Thickness (In.)
8 in
Table Length
25 3/4 in
Overall Depth
26 in
Table Width
20 in
Blade Width
20 in
Maximum Planer Depth of Cut
1/8 in
Dust Port Diameter
5 in
Overall Width
36 5/8 in
Overall Height
41 3/8 in
Head Diameter
3 3/16 in
Maximum Material Width
20 in
Maximum Material Height
8 in

Details

Item
Stationary Planer
Features
Helical Cutter Head with 100 Knife inserts Provides Smoother, Quieter Cutting and Finer Finish Than Conventional Systems, 5HP Motor and 20 in Planning Capacity for Heavy Duty Work, Fully Enclosed Base Cabinet with integrated Casters for Shop Mobility, Cast Iron Table with Extensions Creates A Big 55 1/2 in x 20 in Working Area, Four Feed Speeds 24 and 31 FPM, 16 and 20 FPM with Gear Change Provide Versatility, Feed Rollers and Cutter Head Supported By Full Cast Iron Head Assembly for Rigidity,3 Phase Motor
No Load RPM
5,000 RPM
Corded/Cordless
Corded
Cuts per Minute
20,000
Speed
5,000 RPM
Feed Rates (FPM)
16/20
Amps
14/7
Motor HP
5 hp
Corded/Banded
Corded
Voltage
230V AC
Construction
Cast iron
Includes
Helical Cutterhead with Knife Inserts, 5 in Diameter Dust Port, Cast Iron Extension Tables
Power Source
Corded
Material
Cast Iron
Tool Weight
801 lb
Planer Feed Rate
24/31 fpm
Current
7 A, 14 A
Horsepower
5 hp
Phase
Three-Phase
Planer Type
Floor
Maximum Speed
5,000 RPM
Cutter Type
Helical Head
Number of Blades
100
Kit Contents
5 in Diameter Dust Port, Cast Iron Extension Tables, Helical Cutterhead with Knife Inserts
Cutter Speed
5,000 RPM

Description

Stationary Planer, Power Source Corded, Planer Type Floor, Voltage 230V AC, Phase Three-Phase, Current 7 A, 14 A, Horsepower 5 hp, Maximum Material Width 20 in, Maximum Material Height 8 in, Maximum Planer Depth of Cut 1/8 in, Maximum Speed 5,000 RPM, Planer Feed Rate 24/31 fpm, Cutter Type Helical Head, Number of Blades 100, Tool Weight 801 lb, Blade Width 20 in, Cuts per Minute 20,000, Cutter Speed 5,000 RPM, Dust Port Diameter 5 in, Head Diameter 3 3/16 in
