  11. Router Table, 115V, 3 HP, 15A
This item is Discontinued.

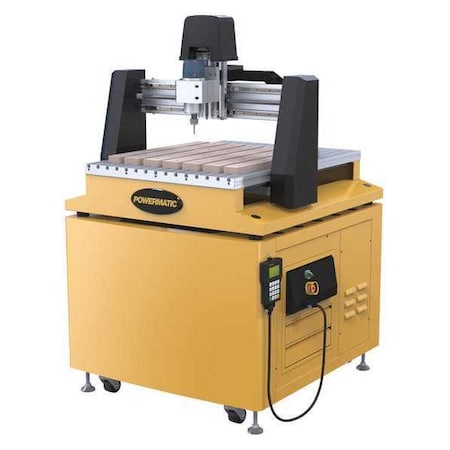

Powermatic Router Table, 115V, 3 HP, 15A 1797022K

Router Table, 115V, 3 HP, 15A (Discontinued)

  • Mfr # 1797022K
  • Zoro # G7346556
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1797022K
Zoro #
G7346556
UPC #
731325489248
Country of Origin
Taiwan, Province of China

Dimensions

Max. Cut Thickness
1 3/4 in
Overall Height
33 in
Overall Depth
42 in
Use With Shank Sizes
Various
Overall Width
39 1/2 in
Table Length
39 3/16 in
Table Width
28 3/16 in
Maximum Cut Thickness
1 3/4 in
Dust Port Diameter
4 in
Cord Length
8 ft
Table Working Width
24 in
Table Working Length
24 in

Details

Item
CNC Router Table
HP
3 hp
Voltage
115
Phase
1
Amps
15 A
Max. Crosscut
24 in
Max. Rip Cut
24 in
Max. Moving Speed
200 in/min
Z Axis Stroke
6 in
Features
Extruded Aluminum Table Delivers A Large and Sturdy Surface, Heavy-Duty Gantry Supports Are Made of Gravity Cast Aluminum, Heavy-Duty Welded Steel Frame Provides Rigidity and Maintains Accuracy, Integrated T-Slots Allow The Hold Down Clamps to Be Positioned In Any Location, MDF Spoil Board Protects The Table From Damage, Precision Ball Screws with Recirculating Ball Bearings Allow for Rapid Movement
Application
Woodworking
Includes
(4) Swivel Casters, Cross Braces, Hardware, Leveling Feet
Corded/Banded
Corded
Corded/Cordless
Corded
Power Source
Corded
Kit Contents
Bare Tool, Stand
Current
15 A
Maximum Moving Speed
200 in/min
Dust Management
Included
Horsepower
3 hp
Spindle Travel
6 in
Maximum Rip Cut
24 in
Plug Type
Three-Prong
Maximum Crosscut
24 in
Nominal Voltage
115V

Description

CNC Router Table, Power Source Corded, Voltage 115V, Current 15 A, Phase Single-Phase, Table Working Length 24 in, Table Working Width 24 in, Horsepower 3 hp, Maximum Speed Not Applicable, Spindle Size Not Applicable, Spindle Travel 6 in, Dust Port Diameter 4 in, Fence Height Not Applicable, Fence Length Not Applicable, Kit Contents Bare Tool, Stand, Includes Dust Shoe, Toolbox for Storage, Collet Size Not Applicable, Cord Length 8 ft, Dust Management Included, Maximum Crosscut 24 in
