Powers Controls

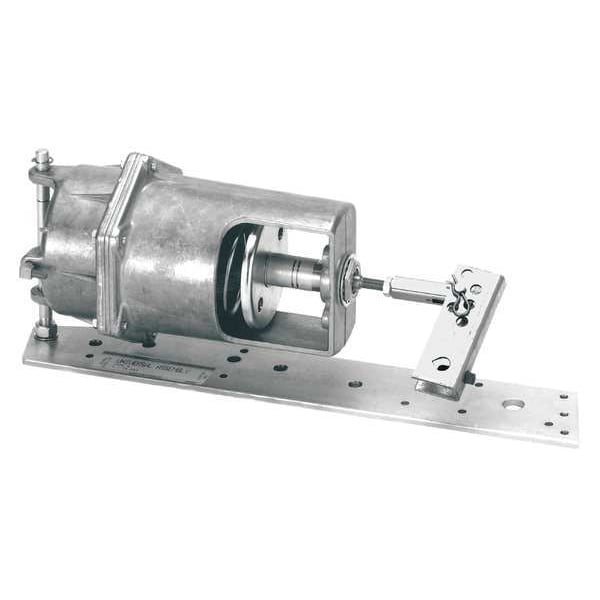

Pneumatic Actuator, 14 in. L, 5 to 10 psi

product price: $374.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Operating PSI Range 5 to 10
  • Max. Air Pressure 30 psi
  • Stroke 4 in
  • Nominal Spring Range 3 to 13 psi
  • Mounting Type Pivot
See all product information

Product Information

Dimensions

Height 7 1/8 in
Width 7 3/16 in
Length 14 in
Overall Width 6 3/16 in
Overall Length 8 7/16 in
Overall Depth 20 13/16 in
Air Connection Size 1/8 in

Details

Item Pneumatic Damper Actuator
Operating PSI Range 5 to 10
Max. Air Pressure 30 psi
Stroke 4 in
Nominal Spring Range 3 to 13 psi
Mounting Type Pivot
Provides Modulating or Two Position Control
Net Force Exerted @ 0 PSI 8-13 psi
For Use With Dampers or Air Valves
Application Air Valves, Dampers
Actuator Connection Clevis, Pivot
Force at 0 psi 54 lbf
Air Connection Gender Female
For Media Air
Control Pressure - Maximum 30 psi
Stem Material Stainless Steel
Installation Orientation Versatile
Actuator Type Linear
Manufacturer Series 331
Specific Valve Action Spring Return Down
Air Connection Type NPT
Operating Temperature - Minimum -20 Degrees F
Spring Material Steel
Fire/Smoke Application Not UL Recognized Components for Fire/Smoke Applications
Spring Range Maximum 10 psi
Spring Range Minimum 5 psi
Operating Temperature - Maximum 200 Degrees F
Diaphragm Material Rubber
Includes Positioner Positioner Not Included

Description

Pneumatic Damper Actuator, Actuator Connection Clevis, Pivot, Actuator Type Linear, Air Connection Gender Female, Air Connection Size 1/8 in, Air Connection Type NPT, Application Air Valves, Dampers, Control Pressure - Maximum 30 psi, Diaphragm Material Rubber, Fire/Smoke Application Not UL Recognized Components for Fire/Smoke Applications, For Media Air, Force at 0 psi 54 lbf, Includes Positioner Positioner Not Included, Installation Orientation Versatile, Manufacturer Series 331
