Shop POWERS FASTENERS

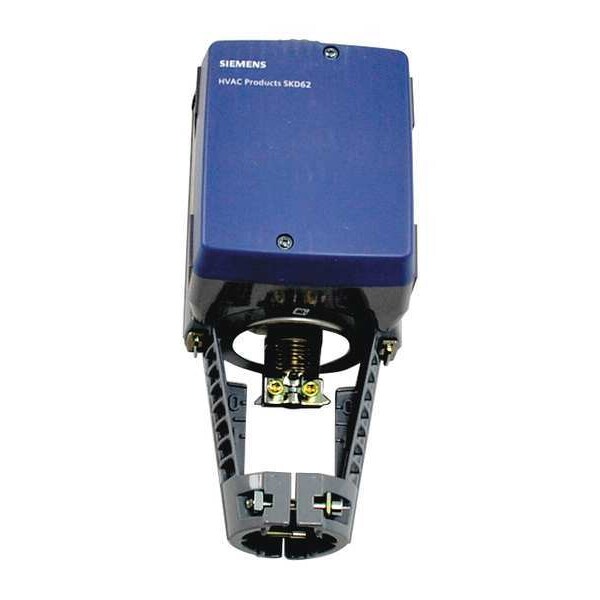

Actuator, Reversible Spring Return, 24V

  • Mfr # SKD62UA

  • Zoro # G0114390

product price:
$
1,380.99
/ea
Free Shipping & Returns

Key Features

Fits Brand
Powers
Product Type
Electro-Hydraulic Valve Actuator
Voltage
24V AC
NEMA Rating
1
Overall Height
11 13/16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SKD62UA
Zoro #
G0114390
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
11 13/16 in
Overall Depth
6 5/8 in
Overall Width
5 in
Stroke Length
13/16 in

Details

Fits Brand
Powers
Item
Actuator
Product Type
Electro-Hydraulic Valve Actuator
Voltage
24V AC
NEMA Rating
1
Frequency
50/60 Hz
Compatible Valve Body Pattern
Three-Way
Compatible Brand
Powers
Return Action
Spring Return
Compatible Valve Action
Normally Closed, Normally Open
Application
Steam Control
Operating Temperature - Maximum
122 Degrees F
Electrical Connection Type
Terminal Block
Control Signal
Proportional
Installation Orientation
Vertical
Standards
UL Listed
Cycle Time
30 sec
Housing Material
Aluminum
Compatible Series
599
Power Consumption
30 VA
Operating Temperature - Minimum
5 Degrees F

Description

Actuator, Application Steam Control, Compatible Brand Powers, Compatible Series 599, Compatible Valve Action Normally Closed, Normally Open, Compatible Valve Body Pattern Three-Way, Control Signal Proportional, Cycle Time 30 sec, Electrical Connection Type Terminal Block, Frequency 50/60 Hz, Housing Material Aluminum, Installation Orientation Vertical, NEMA Rating 1, Operating Temperature - Maximum 122 Degrees F, Operating Temperature - Minimum 5 Degrees F, Overall Depth 6 5/8 in
